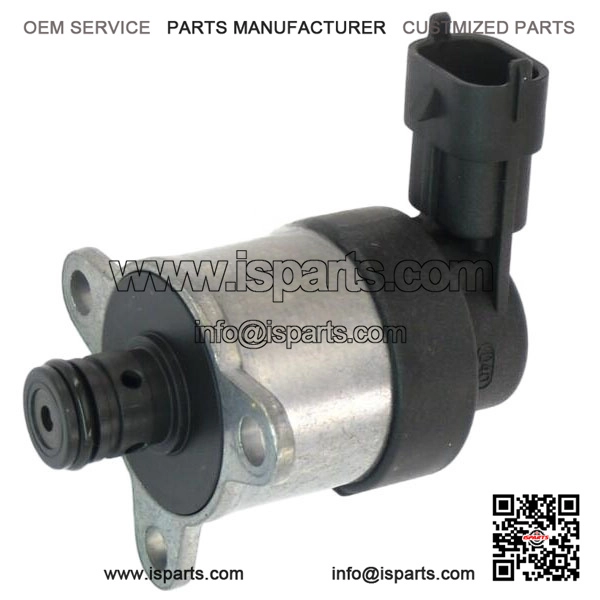

0928400671 / 1465ZS0009 Pressure Control Valve Regulator for Nissan Renault

Common Rail Fuel Pressure Control Valve
1465ZS0009
INFO:
The fuel pressure control valve comprises a fuel-cooled solenoid valve.
The valve opening is varied by its solenoid coil being pulse width modulated at a frequency of 1 KHz.
When the pressure control valve is not activated, its internal spring maintains a fuel pressure of about 100 Bar.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure.
The fuel pressure control valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
This part is called by many names including:
MPROP / FCA / Injection Pressure Regulator / Fuel Pressure Regulator / Fuel Control Actuator / Measuring Unit / Fuel Measurement Solenoid Valve
0928400671 can be used in car models:
NISSAN CABSTAR 35.15 10.2006- 101 137 2953
NISSAN CABSTAR 45.15 10.2006- 110 150 2953
NISSAN PATROL GR II Wagon (Y61) 3.0 D All-wheel Drive 10.2004- 118 160 2953
NISSAN PATROL II (GU) 3.0 D 4×4 (Y61) 09.2007- 118 160 2953
RENAULT Mascott 130 06.2007- 96 2953
RENAULT Mascott 150 06.2007- 110 150 2953
RENAULT Maxity 150.35 03.2007- 110 150 2953
RENAULT Maxity 150.45 03.2007- 110 150 2953
Analogous, Fully interchangeable parts:
RENAULT 226701194R
RENAULT 5802001914
0928400671
Pressure regulator can be used on Fuel Distributor Tubes:
0445010136, 0445010195, 0986437031
RENAULT 7421049696, 7485124827, 7485129393, 5001872992
NISSAN A6700MA70C, 16700MA70A, 16700MA70B, 16700MA70C
