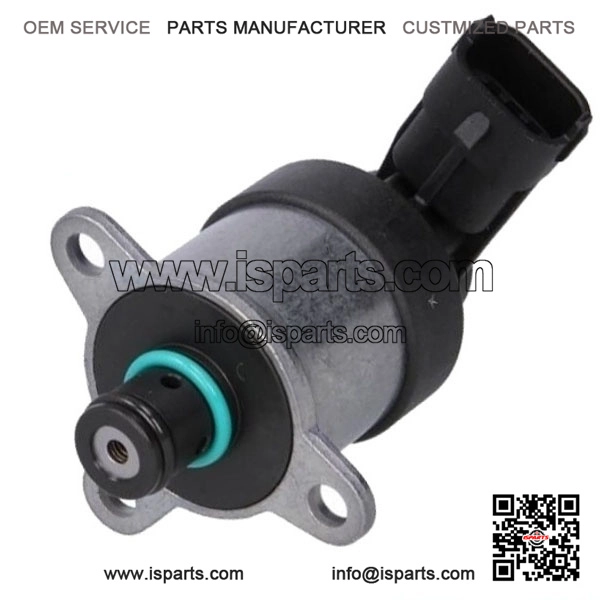

0928400687 / 1465ZS0070 Fuel Pressure Control Valve Regulator

Common Rail Fuel Pressure Control Valve.
1465ZS0070
replaces 0928400687
INFO:
The fuel pressure control valve comprises a fuel-cooled solenoid valve.
The valve opening is varied by its solenoid coil being pulse width modulated at a frequency of 1 KHz.
When the pressure control valve is not activated, its internal spring maintains a fuel pressure of about 100 Bar.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure.
The fuel pressure control valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
This part is called by many names including:
MPROP / FCA / Injection Pressure Regulator / Fuel Pressure Regulator / Fuel Control Actuator / Measuring Unit / Fuel Measurement Solenoid Valve
1465ZS0070 can be used in car models:
HONDA ACCORD VII (CL) 2.2 i-CTDi 01.2004-05.2008 103 140 2204
HONDA ACCORD VII Tourer (CM) 2.2 i-CTDi 01.2004-05.2008 103 140 2204
HONDA CIVIC VIII Hatchback (FN, FK) 2.2 CTDi 09.2005- 103 140 2204
HONDA CR-V II (RD_) 2.2 CTDi 02.2005-09.2006 103 140 2204
HONDA CR-V III (RE) 2.2 i-CTDi 4WD 01.2007- 103 140 2204
HONDA FR-V (BE) 2.2 i CTDi 07.2005- 103 140 2204
Analogous, Fully interchangeable parts:
0928400576, 0 928 400 576, 0928400687, 0 928 400 687
HONDA 16410RBDAE000, 16410-RBDA-E000
Pressure regulator can be used on Fuel Pumps:
0445010093, 0445010141, 0986437356
HONDA 16790-RBD-E021, 16790-RBD-E022, 16790-RBD-E023, 16790-RBD-E02, 16790-RBD-E020, 16790-RBD-E024
