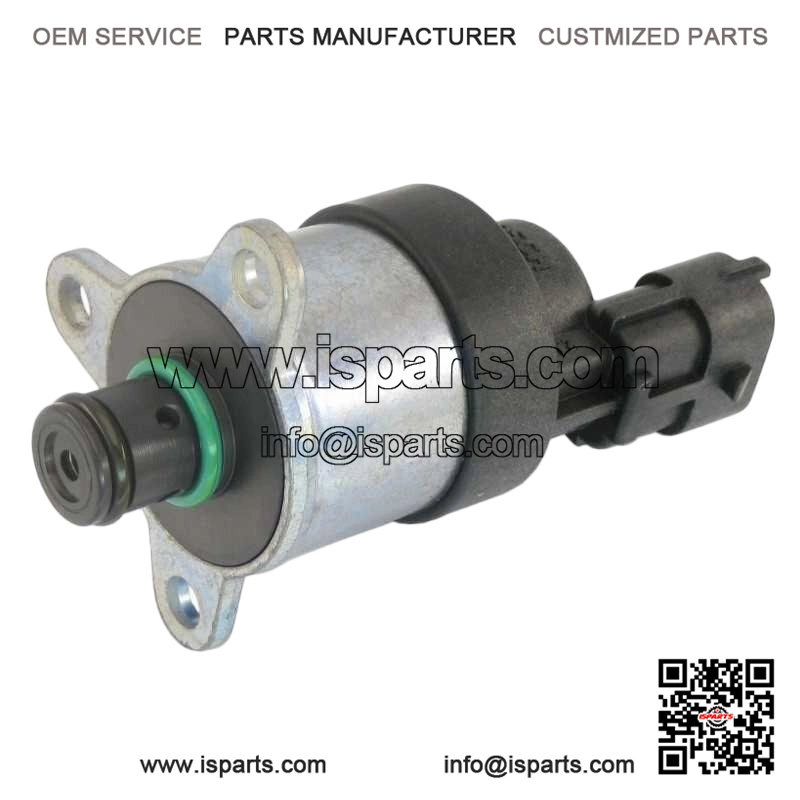

0928400735 / 1465ZS0127 Fuel Pressure Control Valve Regulator for MAN

Common Rail Fuel Pressure Control Valve
1465ZS0127
replaces 928400735
INFO:
The fuel pressure control valve comprises a fuel-cooled solenoid valve.
The valve opening is varied by its solenoid coil being pulse width modulated at a frequency of 1 KHz.
When the pressure control valve is not activated, its internal spring maintains a fuel pressure of about 100 Bar.
When the valve is activated, the force of the electromagnet aids the spring, reducing the opening of the valve and so increasing fuel pressure.
The fuel pressure control valve also acts as a mechanical pressure damper, smoothing the high frequency pressure pulses emanating from the radial piston pump when less than three pistons are activated.
This part is called by many names including:
MPROP / FCA / Injection Pressure Regulator / Fuel Pressure Regulator / Fuel Control Actuator / Measuring Unit / Fuel Measurement Solenoid Valve
1465ZS0127 can be used in car models:
MAN HOCL 18.310, 18.360, 18.400, 18.440, 18.480
MAN HOCL 24.440, 24.460, 24.480
MAN LION S CITY A 22
MAN NG 313, 353
MAN NL 273, 313
MAN SL II 353
MAN S?? 313, 353
MAN TGA 18.310, 18.320, 18.350, 18.360, 18.390, 18.400, 18.430, 18.440, 18.480, 18.540
MAN TGA 19.440, 19.480
MAN TGA 24.350, 24.360, 24.390, 24.400, 24.430, 24.440, 24.480, 24.540
MAN TGA 26.310, 26.350, 26.360, 26.390, 26.400, 26.430, 26.440, 26.480, 26.540
MAN TGA 28.320, 28.350, 28.360, 28.390, 28.400, 28.480, 28.540
MAN TGA 32.350, 32.360, 32.390, 32.400, 32.430, 32.440, 32.480
MAN TGA 33.350, 33.360, 33.390, 33.400, 33.430, 33.440, 33.480
MAN TGA 35.350, 35.360, 35.390, 35.400, 35.430, 35.440, 35.480
MAN TGA 37.350, 37.360, 37.390, 37.400, 37.430, 37.440, 37.480
MAN TGA 39.400, 39.440, 39.480
MAN TGA 40.440, 40.480
MAN TGA 41.350, 41.360, 41.390, 41.400, 41.430, 41.440, 41.480, 41.540
MAN TGL 7.150
MAN TGS 18.320, 18.360, 18.400, 18.440, 18.480, 18.540
MAN TGS 19.360, 19.400, 19.440, 19.480
MAN TGS 21.360, 21.400, 21.440, 21.480
MAN TGS 24.320, 24.360, 24.400, 24.440, 24.480, 24.540
MAN TGS 26.320, 26.360, 26.400, 26.440, 26.480, 26.540
MAN TGS 28.320, 28.360, 28.400, 28.440, 28.480, 28.540
MAN TGS 32.320, 32.360, 32.400, 32.440, 32.480
MAN TGS 33.320, 33.360, 33.400, 33.440, 33.480, 33.540
MAN TGS 35.320, 35.360, 35.400, 35.440, 35.480, 35.540
MAN TGS 37.320, 37.360, 37.400, 37.440, 37.480, 37.540
MAN TGS 40.360, 40.400, 40.440, 40.480
MAN TGS 41.320, 41.360, 41.400, 41.440, 41.480, 41.540
MAN TGX 18.360, 18.400, 18.440, 18.480, 18.540
MAN TGX 24.360, 24.400, 24.440, 24.480, 24.540
MAN TGX 26.360, 26.400, 26.440, 26.480, 26.540
MAN TGX 27.440
MAN TGX 28.360, 28.400, 28.440, 28.480, 28.540
MAN TGX 29.440, 29.480
MAN TGX 33.360, 33.400, 33.440, 33.480, 33.540
MAN TGX 35.360, 35.400, 35.440, 35.480, 35.540
NEOPLAN Trendliner N 3516 ??, N 3516/3 ??L
TEMSA DIAMOND 14
Analogous, Fully interchangeable parts:
MAN 51125050030, 51 12505 0030
0 928 400 735
Pressure regulator can be used on Fuel Pumps:
0445020051, 0445020075, 0986437350
MAN 51 11103 7739, 51 11103 7792, 51 11103 7812, 51 11103 7824, 51 11103 7846, 51 11103 9846
