12v 6-Way Marine Fuse Block Kit,Waterproof DC Fuse Block with Warning LED for Boat,Auto,Motorcycle

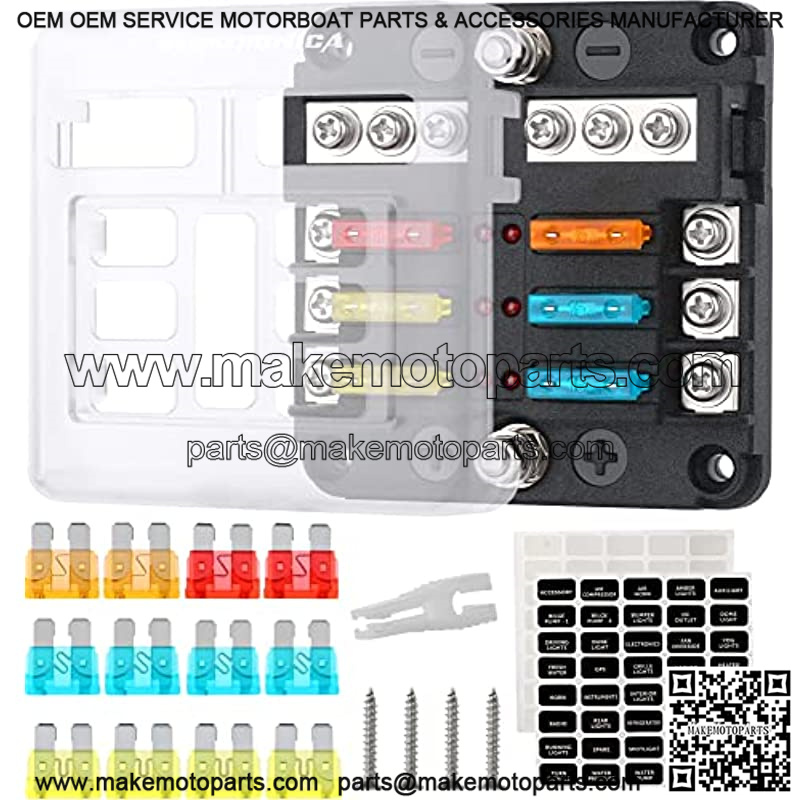

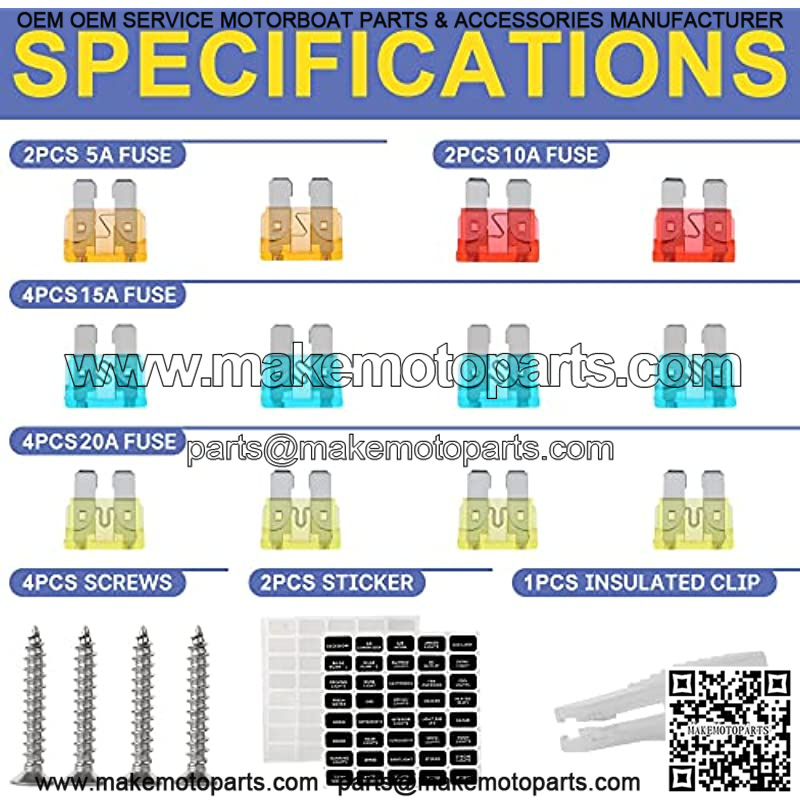

MARINE-GRADE FUSE BOX KIT:The package includes 1*12V 6-way fuse block,12*blade type fuse,4*stainless steel screws,1*instruction manual,2*tip stickers,1*Insulating plastic clips.Easily solve messy wiring problem.It is standing products for Cars,RVs,solar boats etc.
RATED RANGE:The input rated voltage of the fuse box is 32V,and the input rated current is 100A.Each circuit outputs a maximum current of 30A.
RED LIGHT WARNING DESIGN:When the current/voltage exceeds the rated range,the fuse will be automatically blown.It has leds beside each load to indicate if a circuit has shorted or has blown.Convenient and timely processing.
WELL-MADE:PBT flame retardant material base,good mechanical strength and high temperature resistance.Free of sharp edges and casting flash.Fuse contacts are tight and do not wobble.The PC transparent cover is dustproof.
SAFE AND RELIABLE:All busbars and fuse pieces are nickel-plated copper,corrosion-resistant and highly conductive.Positive and negative is stainless steel bolts,Carrying a good conductor.
SPECIFICATIONS
Input Voltage
12V-24V DC
Maximum Amperage
100A per block/ 30A per circuit
Maximum Voltage
32V
Quantity of Fuse Slots
6
Main Line Terminal
M4 threaded stud
Main Wire
??12-6
Single Wire Terminal
M4 threaded stud
Single Wire
#12-16
Product Dimensions
87.75*85*36.5mm
ISO Approved
ABYC/USCG Requirements
Fuse Type
Standard(ATC or ATO)
Type
Fuse Blocks
