17-Inch x 5/8″ Circle Hole 34″ High Lift Blade Replacement for Ariens & Gravely Mowers

Premium Quality Replacement Part

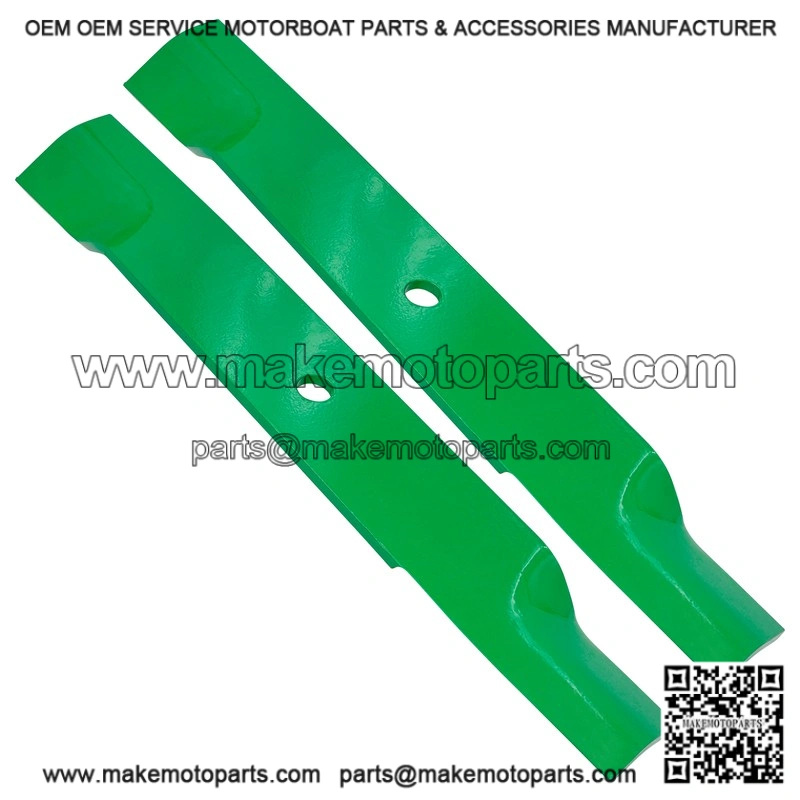

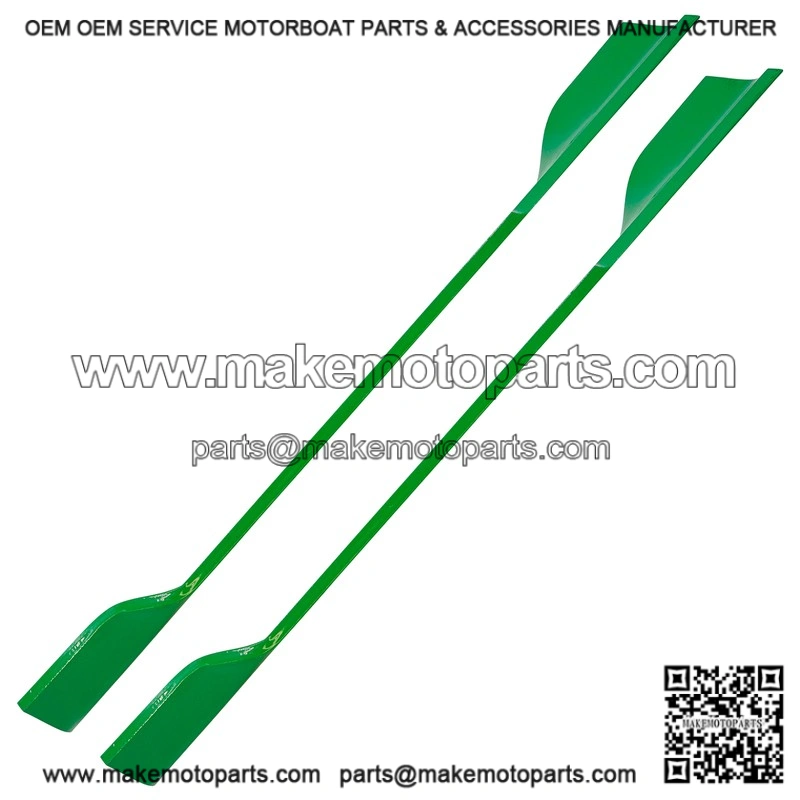

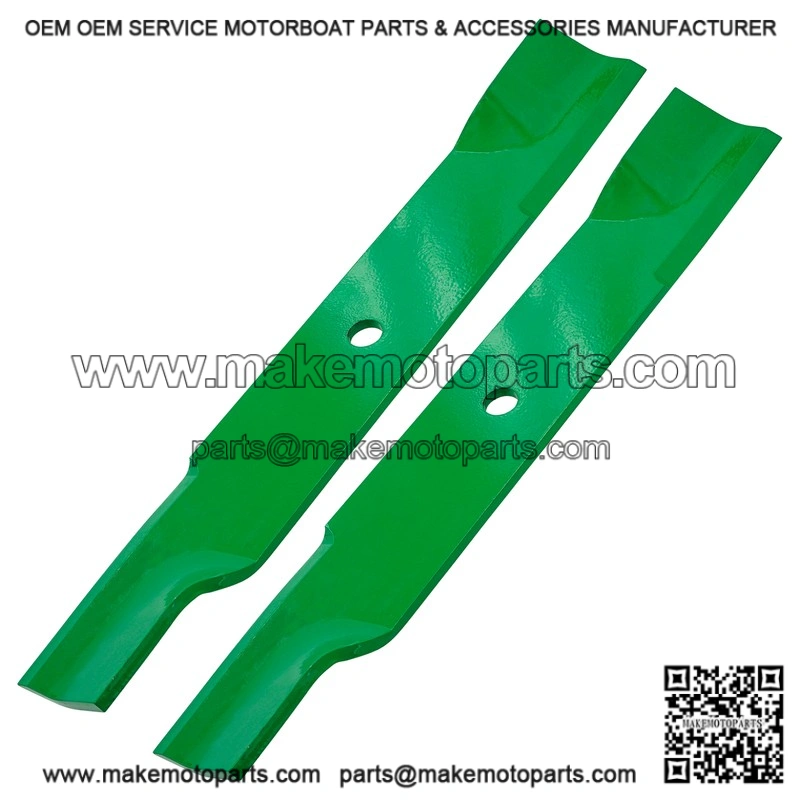

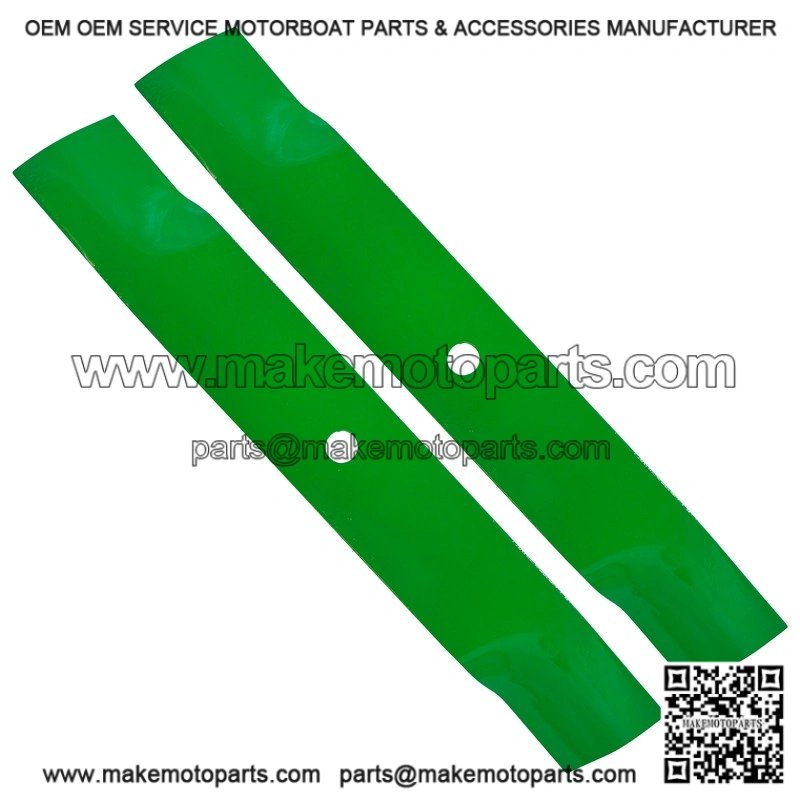

High Lift Blade
Compatible With Gravely Models:
988121 (GR 1334 FX) 34″ 13hp Kaw. (SN: 000101 – 006000 & Above)
988122 (GR 1334 FXP) 34″ 13hp Kaw. (SN: 000101 – 006000 & Above)
988134 (GR 1334 FX) 34″ 13hp Kaw. (SN: 000101 & Above)
991022 (PM 34M) 34″ 17hp Kaw. (SN: 000101 – SN: 003000 & Above)
991043 (PM 34M) 34″ 17hp Kaw. (SN: 000101 – 003000 & Above)
991071 34″ 17hp Kaw. (SN: 000101 & Above)
991088 34″ 17hp Kaw. (SN: 000101 – 059999)
991105 34″ Kaw. (SN: 020000 – 059999)
992056 (PM 34Z) 34″ 15hp Kaw. (SN: 000101 – SN: 005000 & Above)
992314 (PM 34Z) 34″ 15hp Kaw. (SN: 000101 – 001499)
Order Includes:
2x High Lift Blade:
Ariens: 08779200, 09082400, 09246700, 21285000, 8779200
Gravely: 046998, 08779200, 08899600, 09082400, 09246700
11234, 21285051, 46998, 8779200, 8779251, 8861651, 88993300
Woods: 09082400KT, 09246700, 09246700CKT
Bunton: PL7329
Dixie Chopper: 30227-N
Stens: 320-510

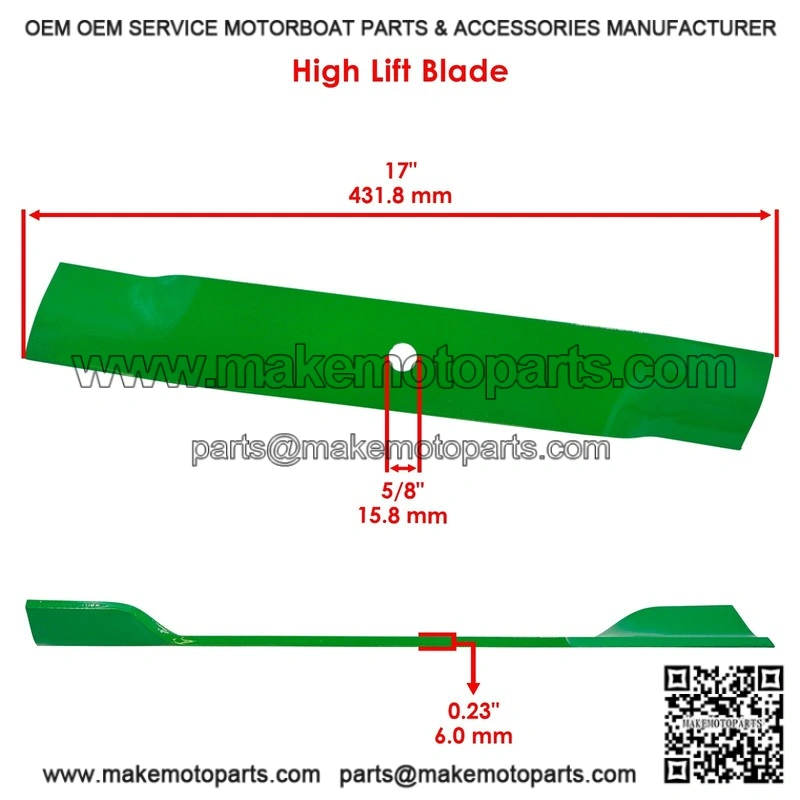

Length: 17 in – 431.8 mm
Thickness: 0.23 in – 6.0 mm
Center Hole Diameter: 5/8 in- 15.8 mm
Powder Coated
