21549017 / 21546127 54-Inch Deck Spindle with Pulley & Blade for Ariens (Part #936096, 936097)

Premium Quality Replacement Part
Spindle with Pulley & Blade
Compatible with Ariens:
Lawn Tractor:
936040 (960460004-00) – 48″, 54″, 25hp Kohl. Precision Hydro
936043 (960460018-00) – 48″, 54″, 25hp Kohl. Hydro
936054 (960460027-00) – 48″, 54″, 25hp Kohl. Gear
936054 (960460027-02) – 48″, 54″, 25hp Kohl. Gear
936055 (960460028-00) – 48″, 54″, 25hp Kohl. Hydro
936055 (960460028-02) – 48″, 54″, 25hp Kohl. Hydro
936059 (960460039-00) – 48″, 54″, 25hp Kohl. Hydro
936068 (960460051-00) – 48″, 54″, Hydro
936068 (960460051-01) – 48″, 54″, Hydro
936069 (960460052-00) – 48″, 54″, Hydro
936069 (960460052-01) – 48″, 54″, Hydro
936078 (960460057-00) – 48″, 54″, Automatic
936097 (960460073-00) – 48″, 54″, Automatic
936096 (960460074-00) – 54″, Automatic

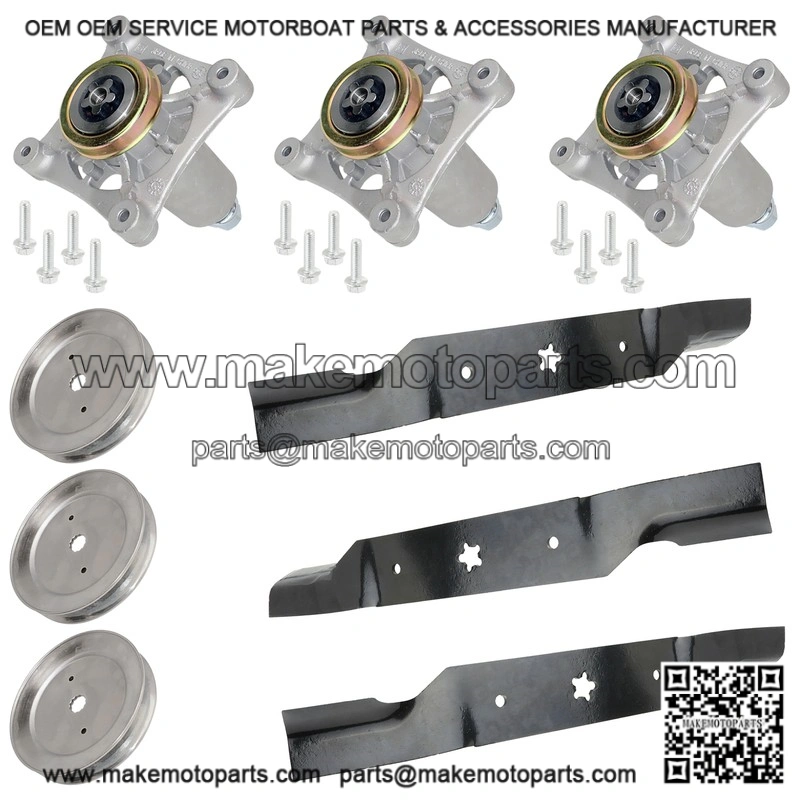

Order Includes:

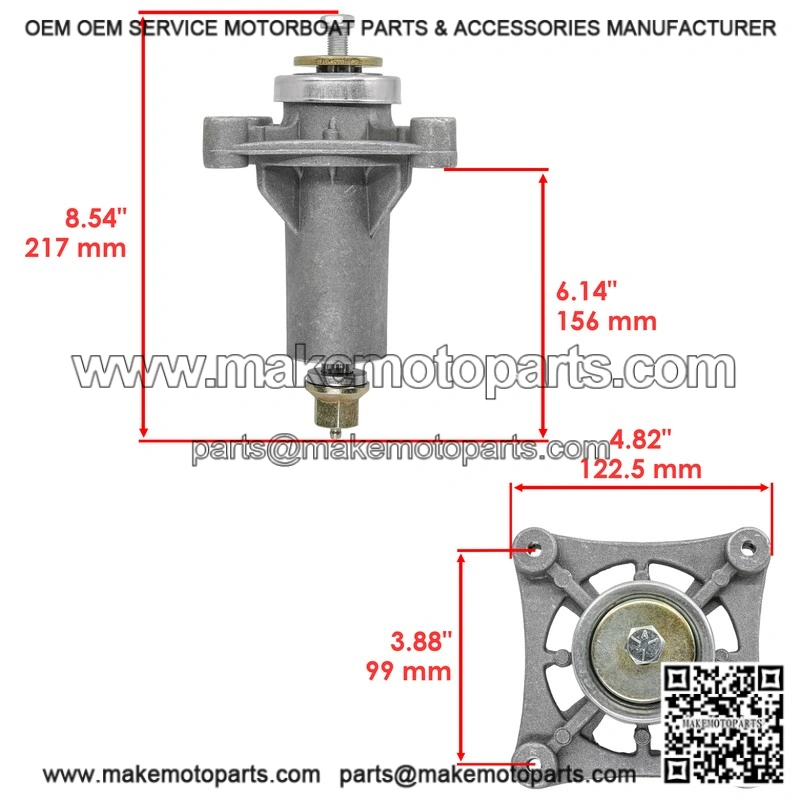

3x Spindle: 21549017, 21546240, 21549016
Width: 122.5 mm – 4.82 in
Height: 217 mm – 8.54 in
3x Pulley: 21546127
Inner Diameter: 16.4 mm – 0.64 in
Outer Diameter: 131.8 mm – 5.18 in
Width: 3.5 mm – 0.92 in

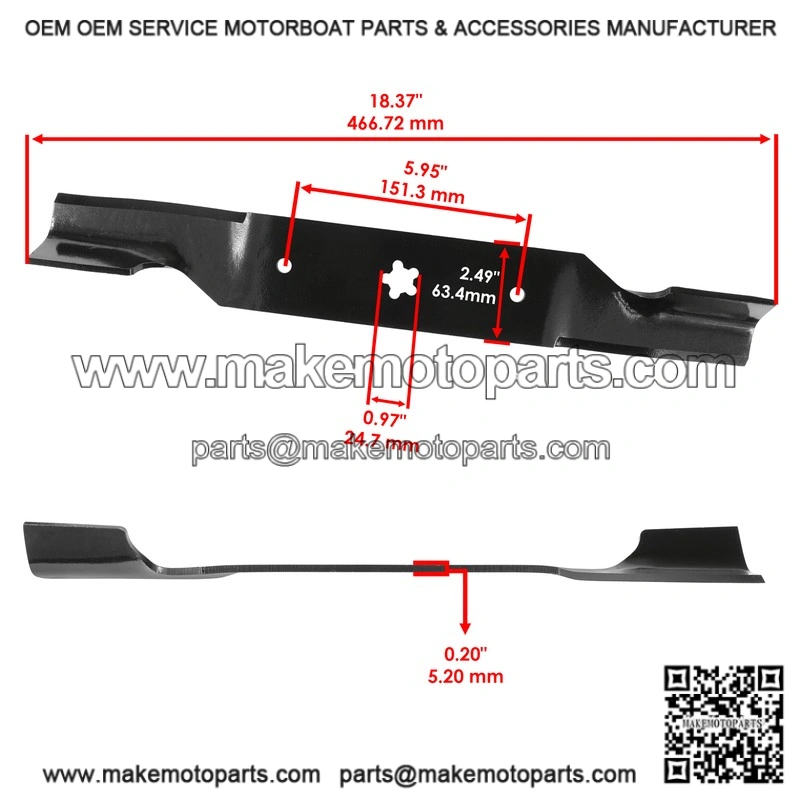

3x Blade: 21546235
Length: 466.72 mm – 18.37 in
Height: 63.4 mm – 2.49 in
Width: 5.20 mm – 0.20 in
