240-33ohm Fuel Gauge for Boat Fuel Gauge Waterproof Marine Fuel Gauge Digital Level Meter Motorcycle Fuel Tank Level Gauge with Red Backlight for Boat Car Truck Yacht 12/24V 52MM Fuel Lever Gauge

Suitable for 240-33ohm output signal fuel level sensors and display oil level of fuel tank
Fuel Gauge Fixing dimension: 52mm(2″), Signal: 240-33ohm, Range: 0-100%, Working volt: 9-32VDC .
316 Stainless steel bezel with curved glass; Convenient Installation by multi-plug socket connecting way. Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
IP67 waterproof and dustproof grade, Applicable for Cars, Trucks, Tractors, Vehicle Diesel to Match Fuel Sending Unit for Diesel Oil/ Gasoline Level Monitoring. High sensitivity and easy operation.
The fuel level gauge will accurately display fuel level remaining in your gas tank. Red LED backlight to ensure you can easy reading the gauge no matter the environment.
Technical Data

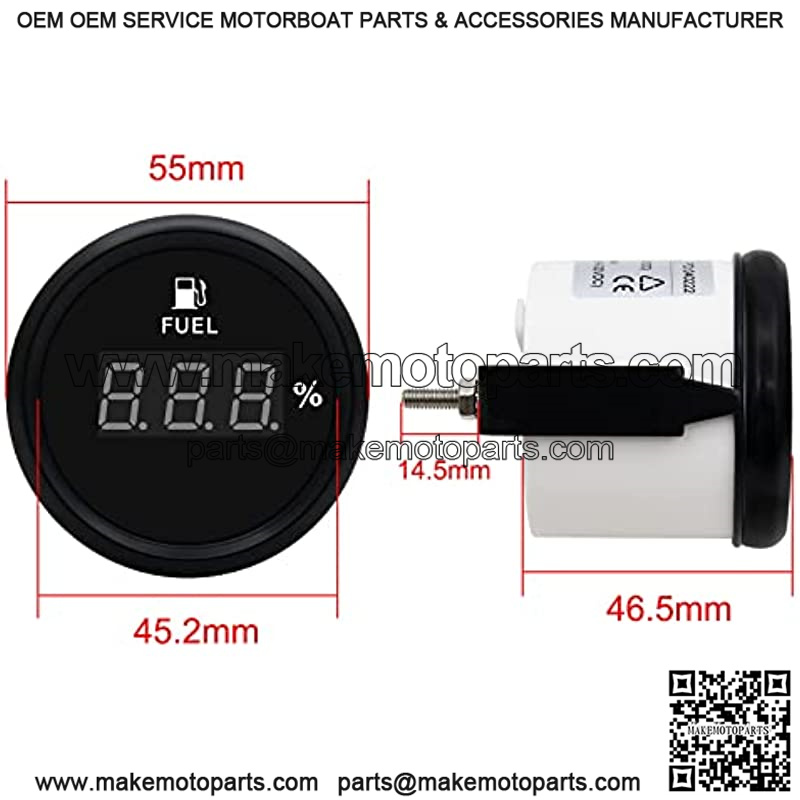

Fixing dimension
??52mm (2″) or 2-1/16″
Indicating Range
0~100%
Working Voltage
9V ~32 V and fit (12~24 V)
Input signal
240-33 ohm
Backlight Color
RED
Grade of protection
IP67
Material
Plastic,Rubber,Metal
Operating temperature
-30??~+75??
Key Features:
Suitable for all kinds of fuel level sensors with same signal, and display oil level of fuel tank
Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.
Protection rank : Protection grade is IP 67, the whole body is completely waterproof
316 Stainless steel bezel with curved glass, Excellent anti-fogging function

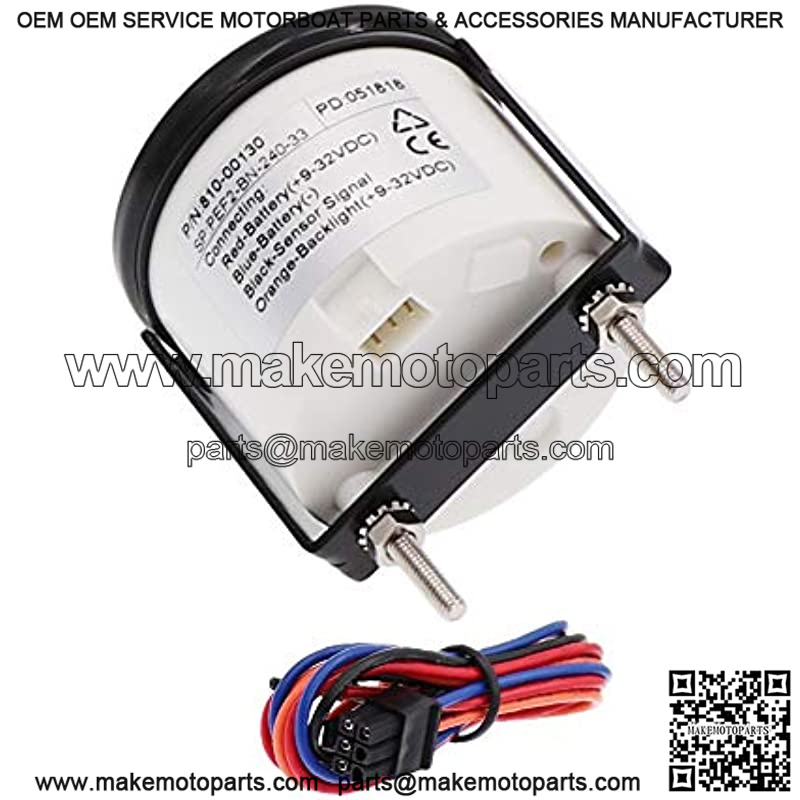

Convenient Installation by multi-plug socket connecting way
This Level Gauge will Work with any Level Sender with American Standard (240-33 ohms) Resistive Output(It Can Also be Used on Truck/Car to Match Fuel Sending Unit for Diesel Oil/ Gasoline Level Monitoring.
Package Includes:
1x Fuel Level Gauge
1x Multi-plug socket
1x Installation Instruction
