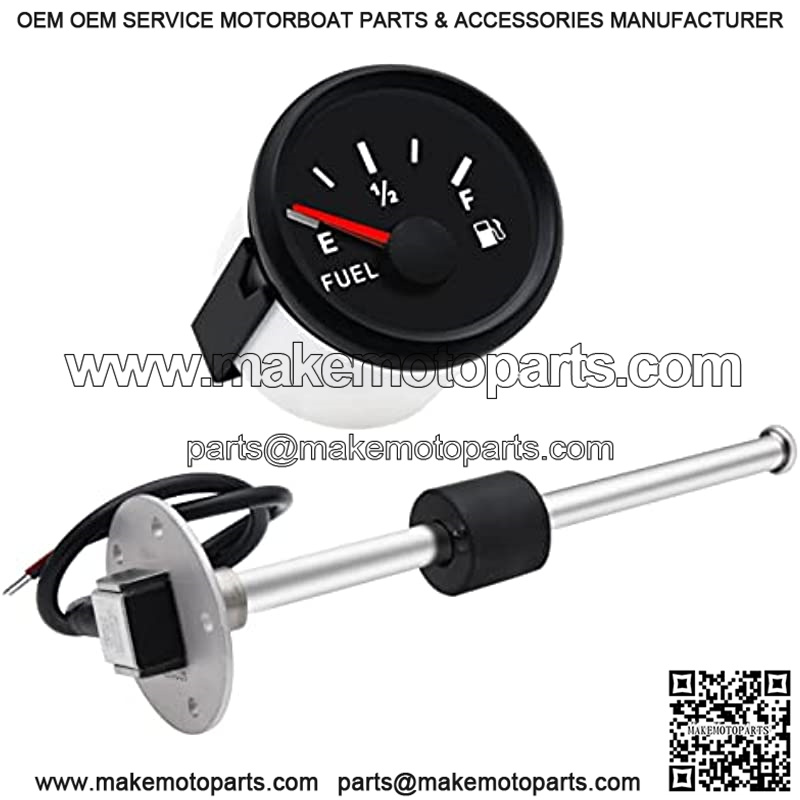

240~33ohm 250mm Marine Fuel Gas Sender Boat Water Level Gauge Sensor + 52mm Motorcycle Fuel Level Gauge Meter

240-33ohm 250mm fuel sending unit stainless steel fuel gas sender fit for marine boat water fuel level gauge
52mm marine fuel gauge marine boat tank level indicator 240-33ohm Waterproof with 8 color backlight
Fuel tank sending unit mounting methods: Standard SAE 5 hole pattern . Resolution range: 21mm
Digital Fuel Gauge indication range: E~F , Connection method:row insert. Mounting directly in 52mm or 2 inch hole
For all fuel engines with sender thread connection.It can alert you that higher or lower than normal water temperature reading, to protect your driving safe
Product Description
Description:
52mm water level gauge
– The gauge with backlight indicator
– Suitable for 12 volt systems. Prevents overheating or cold seizure.
Fuel & liquid fuel level sending unit
– Simple and easy to use.
– High performance,stable and reliable, advanced corrosion resistance.
– Suitable for boat, truck, RV, generators/gen set, bus and marine field.
Specification:
– Boat fuel tank gauge:
– Bezel aterial: 316L stainless steel
– Input voltage: 9~32VDC
– Boat fuel lever gauge signal: 240-33ohm
– Range: ??60A
– Backlight: red
– Working temperature: -30~+75 ??
– Storage temperature: -40~+85 ??

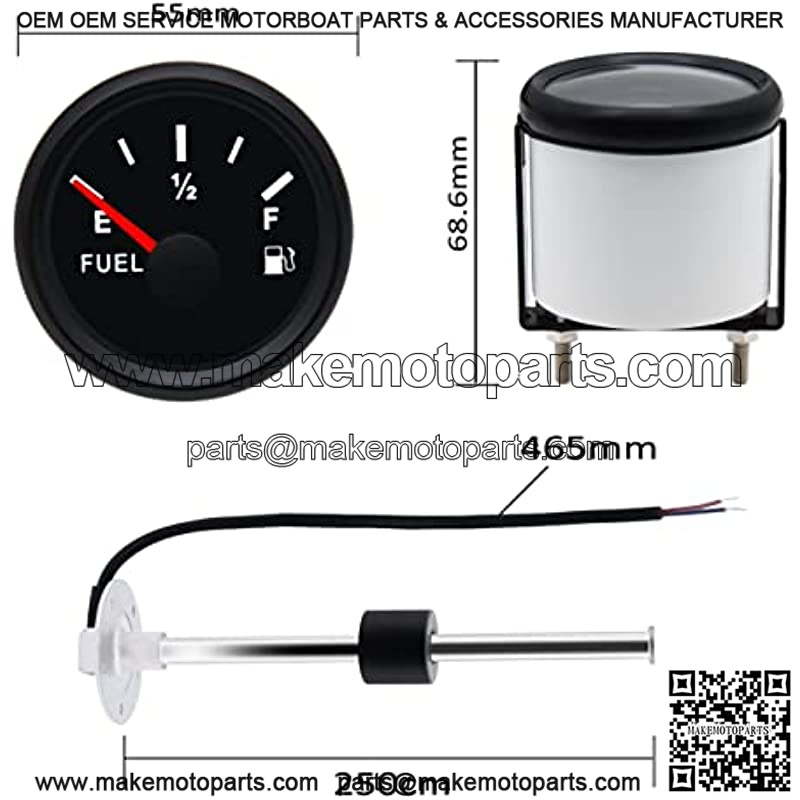

– Diameter: 52mm – 2 1/16 inch
– Operation mode: LCD display, stepper motor
– Indicating range: E-1/2-FULL (E means empty, 1/2 means half fuel,F means full fuel)

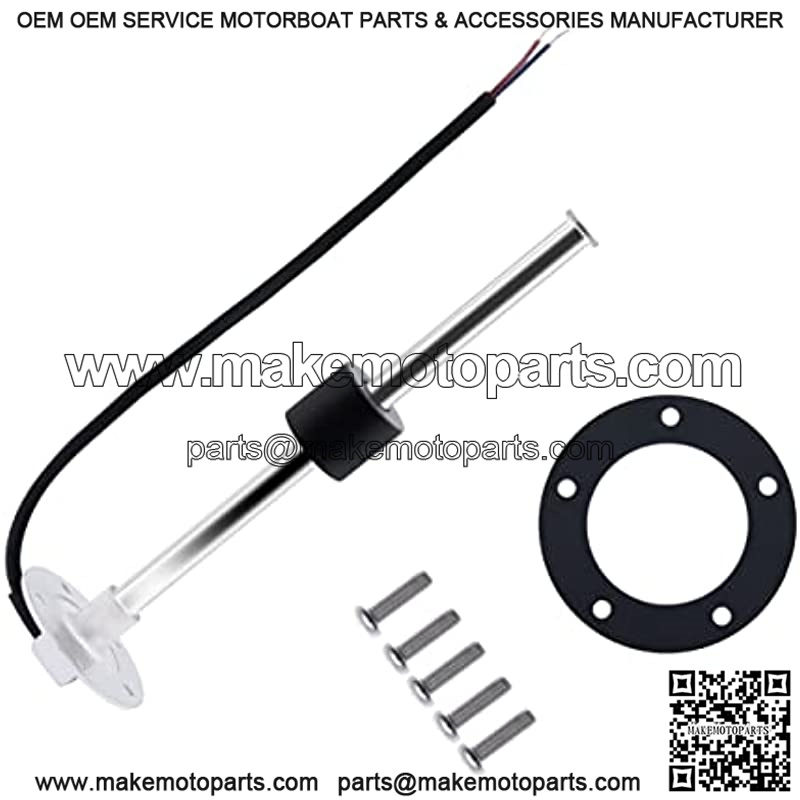

– Fuel tank sender assembly:
– Material: 316 stainless steel
– Output signal: 240-33ohm
– Resolution range: 21mm
– Length range: 250mm
– Mounting methods: standard SAE 5 hole pattern

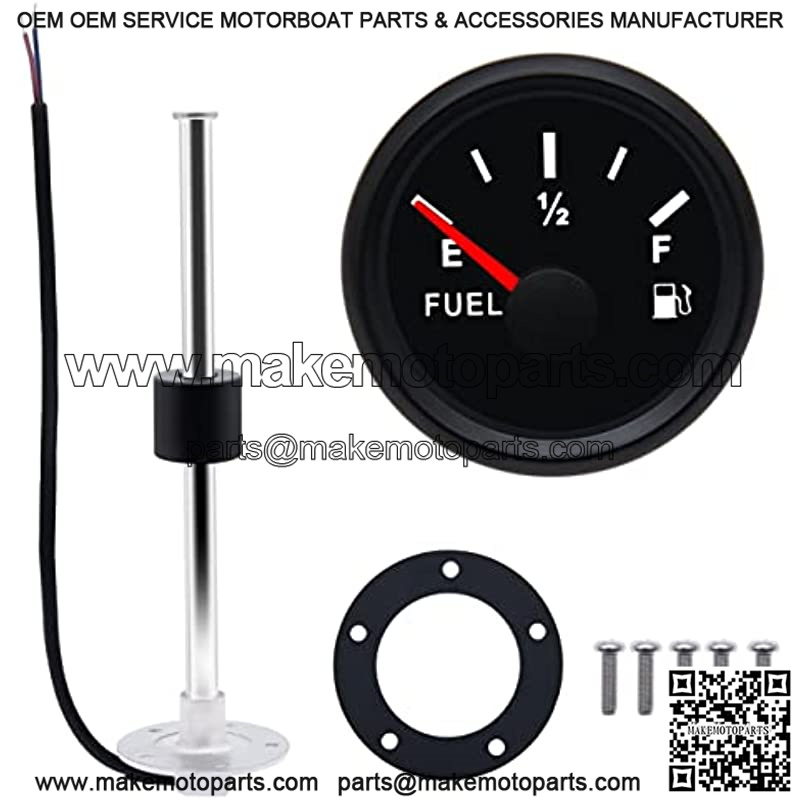

Package Includes:
1x Fuel Level Tank Gauge
1x Fuel Water Level Sensor
1x Manual
1 x Gasket
5 x Fixing Screws
Note:
Due to the light and screen setting difference, the item’s color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
