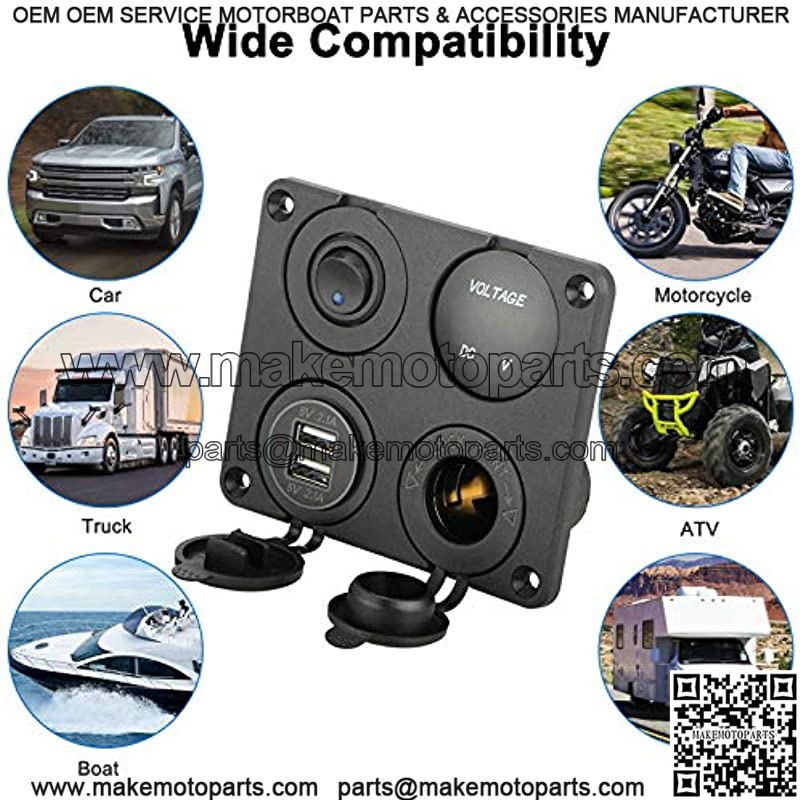

4 in 1 Charger Socket Panel, 12V 4.2A Dual USB Charger Socket Power Outlet & LED Voltmeter & Cigarette Lighter Socket & LED Lighted ON Off Rocker Toggle Switch for Car Marine Boat RV Truck

EASY TO CONNECT: No instruction manual, so you must note that the brass pin on the switch must be connected to the negative for its backlight LED, whereas the two nickel pins are the positive-from-battery and the positive-to-load
EASY TO INSTALL: Not have much spare clearance, when the 4 mounting holes are large enough to accommodate the device, they are very nearly the same size as the cover plate. So, measure and drill VERY CAREFULLY lest your cutout becomes larger than the plate meant to cover it!

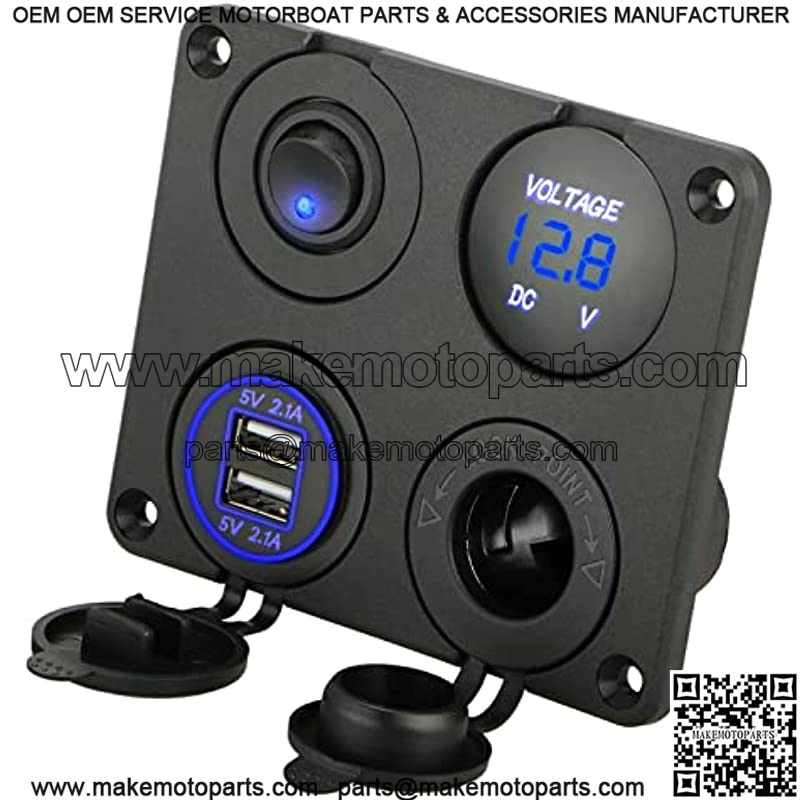

4 IN 1 DESIGN: multifunctional 12v switch panel designed with RV USB outlet 12v + LED digital display voltmeter+ 12v cigarette lighter outlet + LED rocker toggle switch. Convenient for installation and operation. Also detachable to replace other charger sockets or anything else unit that fits.
DUAL 12V USB CHARGER OUTLET: This 12V USB socket is built-in dual USB charging ports, 2 ports output: 5V / 2.1A & 2.1A (total 4.2A), will auto-detect your devices and simultaneously charge 2 devices at optimal speed!
LED ON-OFF ROCKER SWITCH: Designed with rocker style, easy to use. Long lifespan up to 10000 cycles. The additional cigarette lighter socket is portable for other appliances in your vehicle. (Blue led light goes off when the switch is off).
All Components Dimension:
Cigarette Socket Dimension: Approx. 1.18″ * 2.13″(30mm * 54mm) USB Car Socket Dimension: Approx. 1.18″ * 2.05″(30mm * 52mm) Rocker Toggle Switch: Approx. 1.18″ * 1.57″(30mm * 40mm) LED Voltmeter Dimension: Approx. 1.18″ * 1.02″(30mm * 26mm) Four Holes Panel Dimension: Approx. 4.13″ * 3.42″ (L * W)
Assemble & Install At Any Time
Swivel the button to loosen or tighten to replace the parts you want, easy and convenient. Let??s DIY your multi-functional marine switch panel. You can complete kit everything you need.
Noted: Wire diagram not including

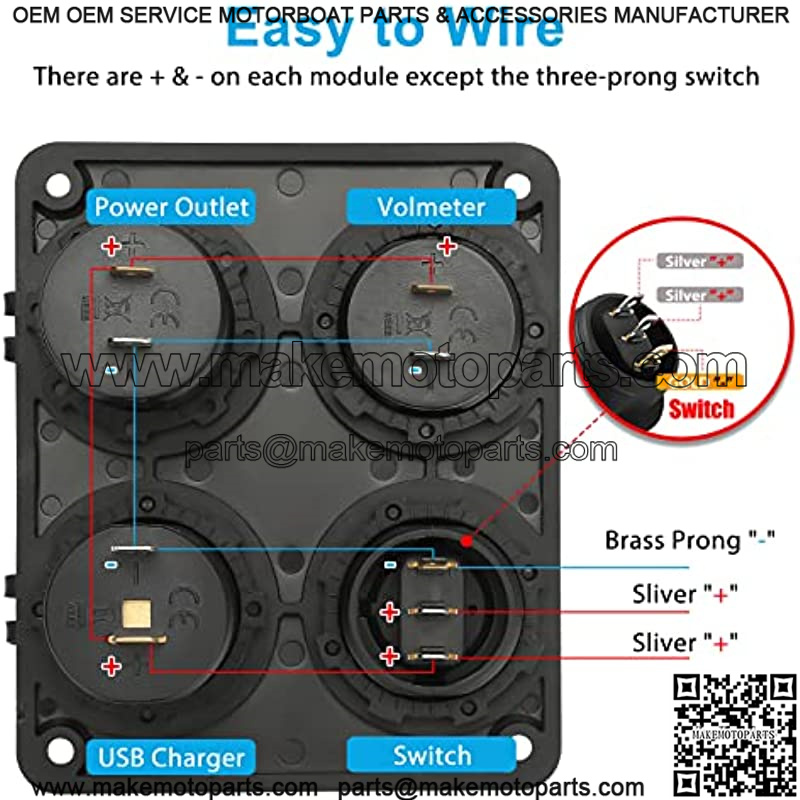

There are + & – on each module except the three-prong switch. One prong is brass, the others are silver.
About this 3-prong switch, the brass prong is negative and the center is positive in, the outer silver prong is supplied positive.

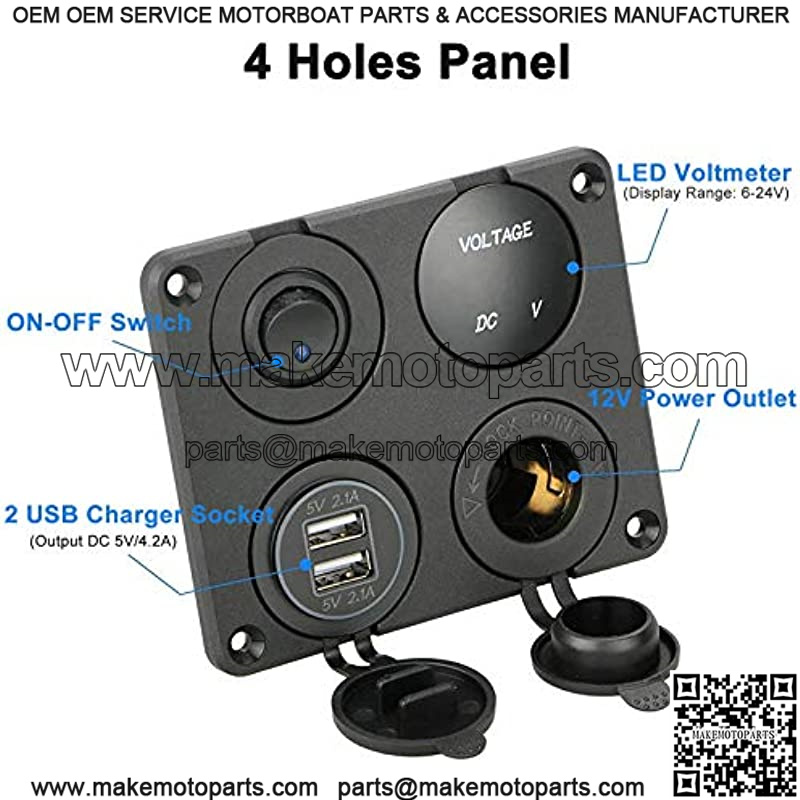

Four Holes Panel
One for 12V Cigarette Socket
One for Blue Light Digital Voltmeter
One for Dual USB Car Socket
One for ON-OFF Rocker Toggle Switch
Individual holes for individual components, also can be replaced to the piece parts you need.
Package Included:
1 x 12V Cigarette Socket1 x Blue Light Digital Voltmeter1 x Dual USB Car Socket1 x ON-OFF Rocker Toggle Switch1 x Four Holes Panel4 x Stainless Steel Screws9 x Blue Terminals(No Wires)
Specification:
Style: 4 in 1 Charger Socket PanelColor: Black Shell & Blue LED LightMaterial: ABSUSB Output: DC 5V/2.1A&2.1A (total 4.2A)Power Outlet: DC 12VVoltmeter Display Range: 6 – 24VToggle Switch: 20A 12V DCPackage Weight: 135g / 4.8oz
3 in 1 Charger Socket Panel
4 in 1 Marine Switch Panel
6 in 1 Marine Switch Panel
4 in 1 Charger Socket Panel
Switch Panel with Volt Meter
DIY Hole
Three
Four
Six
Three
Four
LED Light
Blue
Blue
Blue
Blue
Blue
LED Voltmeter
5-48V LED Voltmeter
5-48V LED Voltmeter
5-48V LED Voltmeter
5-48V LED Voltmeter
5-48V LED Voltmeter
Cigarette Lighter Socket
One-12V Output
One-12V Output
Three-12V Output
One-12V Output
One-12V Output
Dual USB Charger
3.1A Dual USB Charger
4.2A Dual USB Charger
4.2A Dual USB Charger
QC3.0 fast charging ports
4.2A Dual USB Charger
ON/OFF Switch
None
