52mm Marine Fuel Gauge 240-33ohm Boat Fuel Gauge 0-190ohm 0-180ohm Signal Adjustable Waterproof Fuel Gas Tank Gauge Lever Meters E-F with 7 Colors Backlight for Motorcycle Boat Car Truck 9-32V

Marine Fuel Gauges IP67 waterproof and Dustproof grade, 316 Stainless Steel Bezel for long-term use even in acid-base and humid environment .

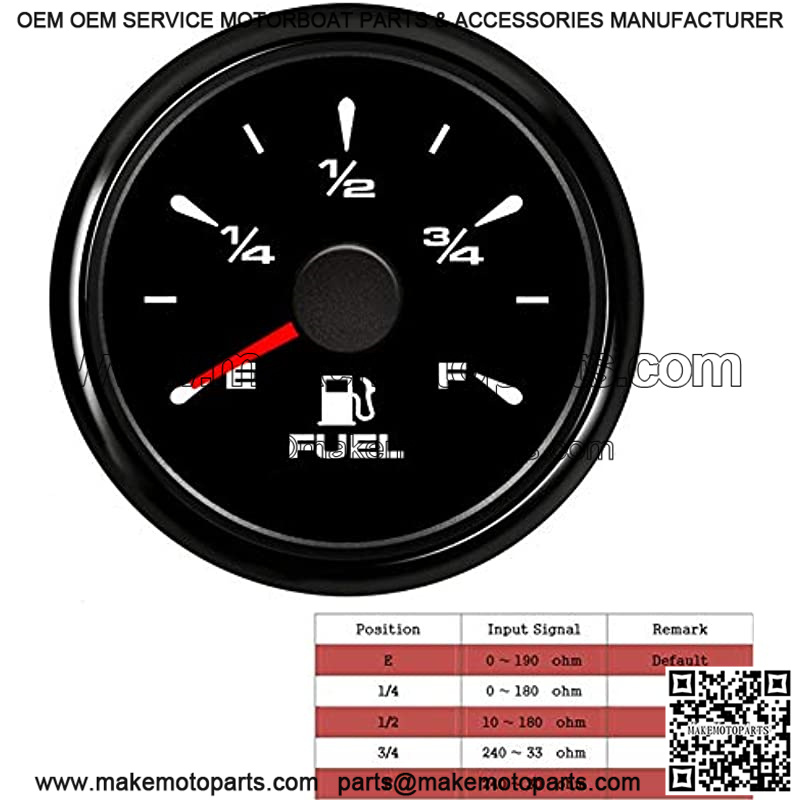

Fuel Lever Gauge Input signal Adjustable: 0~190ohm??0~180ohm??10~180ohm??240~33ohm??240~30ohm
Fuel Tank Gauge Install diameter: ??52mm or 2-1/16″, Indication range: E~F, Working voltage: 9-32v dc [ fit 12V-24V Vehicle or Engine]. With ultra-wide working voltage design (long-term operating voltage:9-32v,maximum up to:36v)
Boat Fuel Gauge is Designed to Measure & Display the Amount of gas or Fuel in Your Boat or Vehicle’s Gas Tank, Can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification etc.
Motorcycle Fuel Gauge 7 Color Backlight Adjustment : red??yellow??orange??green??blue??purple??white, you can choose which one you want color that press the gauge back button
Specifications
Fuel Gauge Material
stainless steel 316L+anti-fog glass
Fixing dimension
52mm (2″) or 2-1/16″
Indication range:
3/4 E-F
Working voltage
9-32V(12V/24V)
Signal Adjustable
0-190ohm, 240-33ohm, 240-30ohm, 0-180ohm, 10-180ohm
Working current

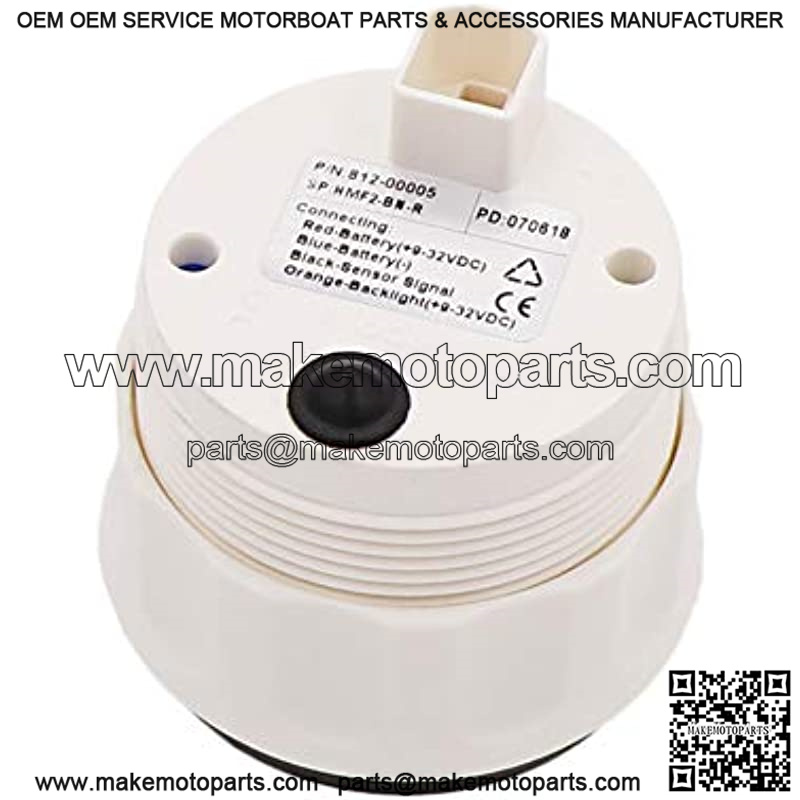

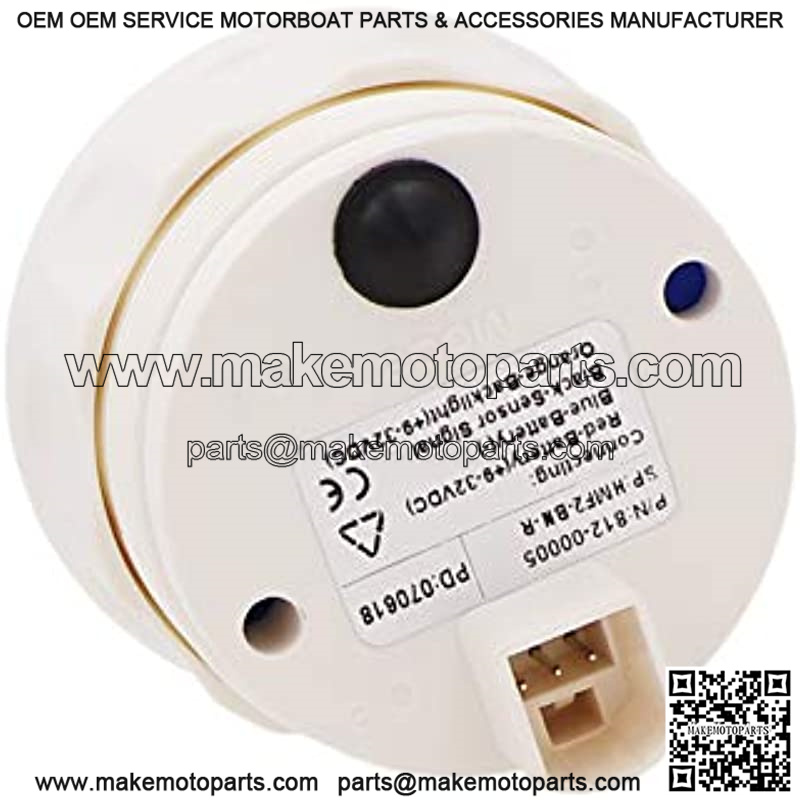

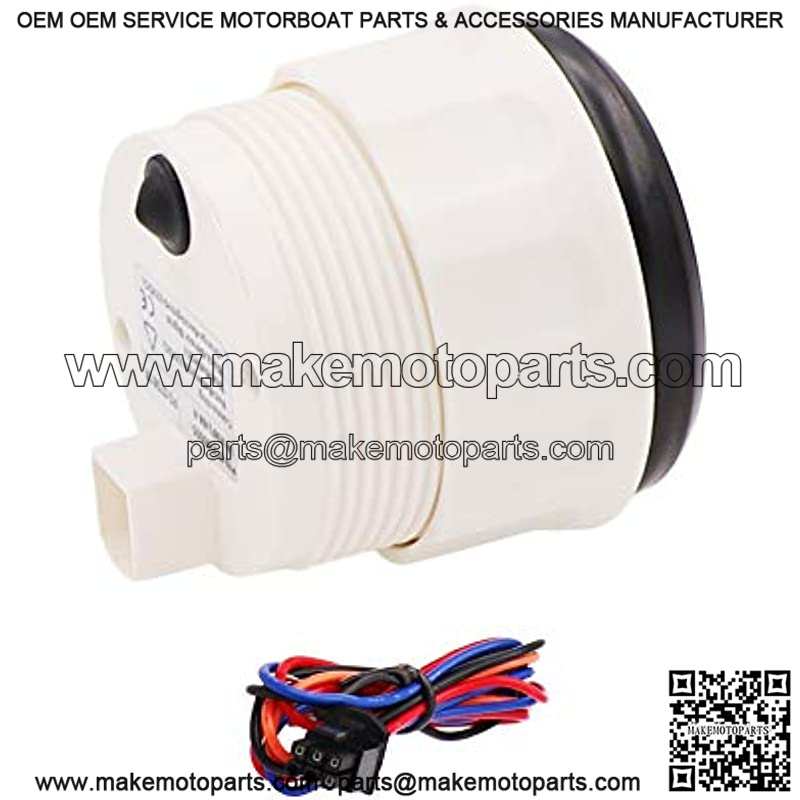

=<60mA Operating temperature -30??~+75?? Grade of protection IP67 Backlight color red??yellow??orange??green??blue??purple??white Features: Fuel lever Gauge front cover use stainless steel 316L for long-term use even in acid-base and humid environment IP67 waterproof and dustproof grade With curved glass (with anti-fog function) With ultra-wide working voltage design (long-term operating voltage:9-32v,maximum up to:36v) There is a snap together with the harness connector,for best and firmly connected,in order that the gauges could work even in strong viberation Fuel Gauge can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification etc. Fuel Gauge have 7 colors Backlight: (red??yellow??orange??green??blue??purple??white, can choose what you need color that press the gauge back button) Marine Fuel Gauge 240-33ohm 0-190ohm 0-180ohm Signal Adjustable Fuel Gauge for Boat Marine 52MM Boat Fuel Gauge Waterproof 240-33ohm Fuel Gauge for Boat Color Black White+Silver Black+Silver Black Signal 0-190ohm, 240-33ohm, 240-30ohm, 0-180ohm, 10-180ohm 0-190ohm, 240-33ohm, 240-30ohm, 0-180ohm, 10-180ohm 0-190ohm, 240-33ohm, 240-30ohm, 0-180ohm, 10-180ohm 240-33ohm Fixing dimension 52mm (2") or 2-1/16" 52mm (2") or 2-1/16" 52mm (2") or 2-1/16" 52mm (2") or 2-1/16"
