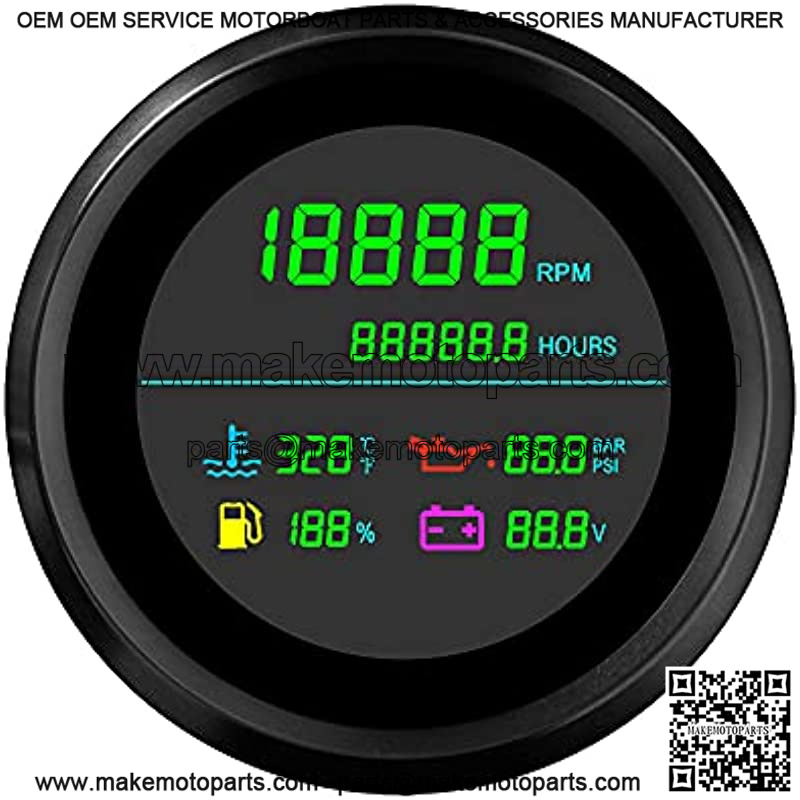

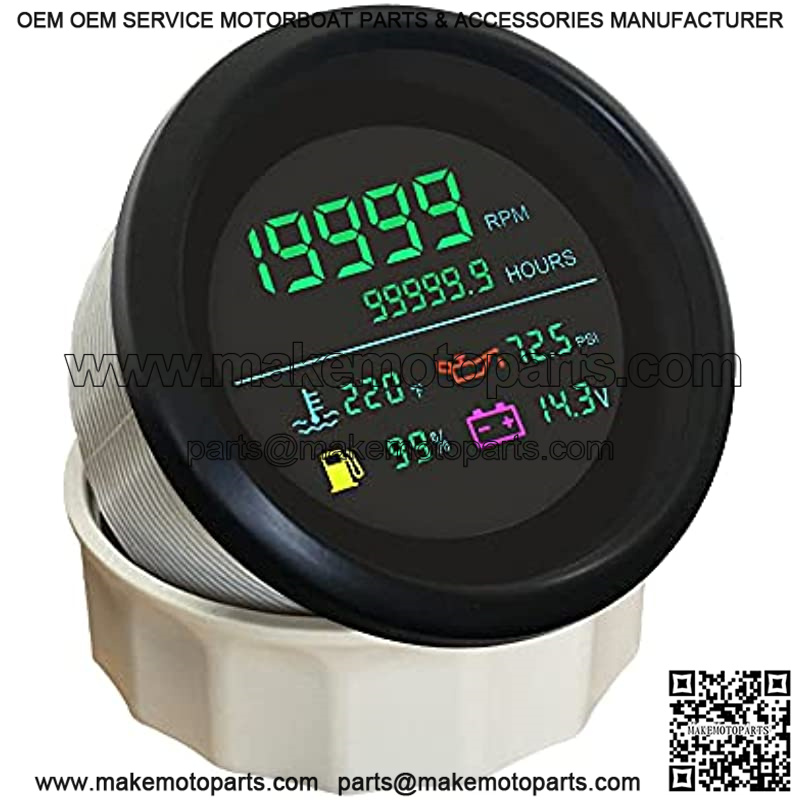

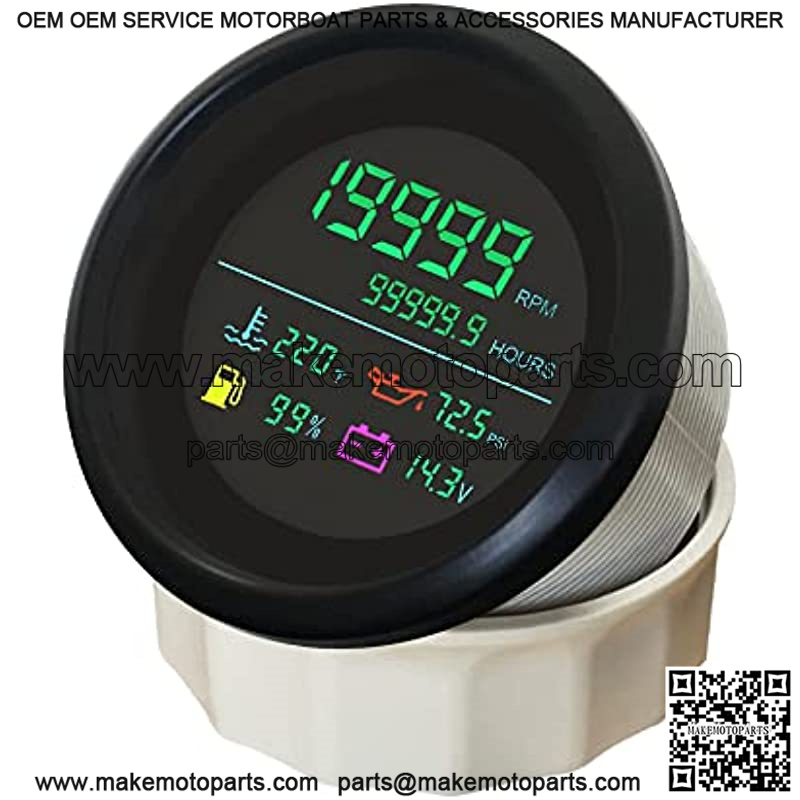

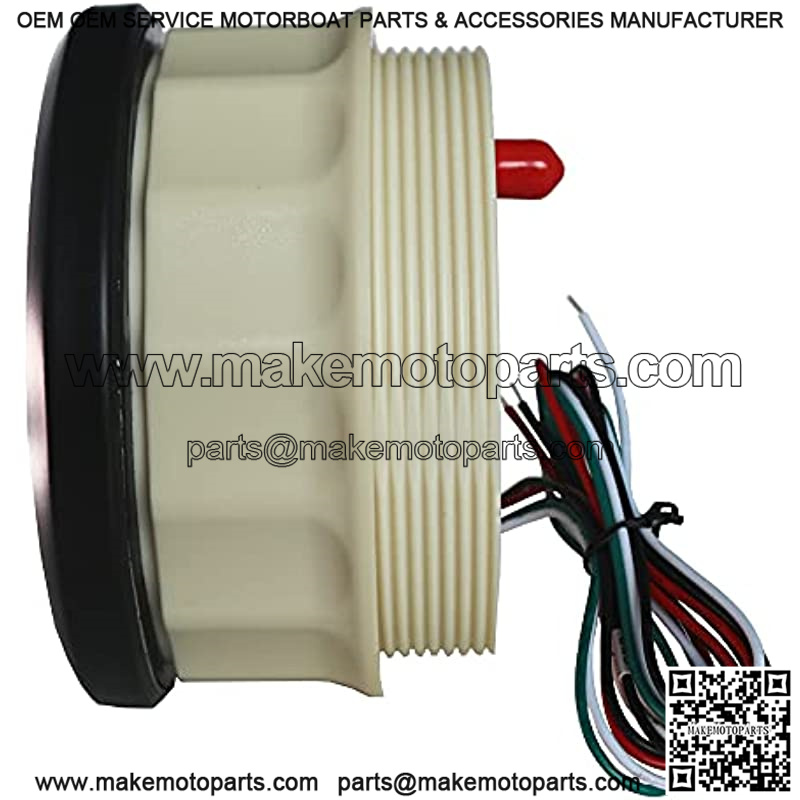

6 in 1 Adjustable Multifunctional Gauge Tachometer Fuel Level Water Temp Oil Pressure Hour Voltmeter 85mm Dimension for Boat Car Motorcycle (Black+Black)

Installation Dimension: 85mm
Ohm Signal Input Programmable Fuel Gauge, Water Temperature & Oil Pressure Gauge)
Indicates: Tachometer RPM Range: 0~19999 RPM; Hour Meter Range: 0-99999.9 hours; Water Temperature Gauge: 0~399 / H; Oil Pressure Gauge: 0~99.9 PSI/BAR; Voltmeter Range: 0~99.9V DC
Electronic Gauge with Unique High Definition and Contrast Ratio LCD
100% waterproof and anti-fogging protection
Product Features:
-Electronic Gauge with Unique High Definition and Contrast Ratio LCD
-Tachometer Ratio Programmable (support W-Terminal connection directly)
-Ohm Signal Input Programmable (Fuel Gauge, Water Temperature & Oil Pressure Gauge)
-Total Hour Meter Programmable
-Reverse polarity protection and anti-fogging performance

Product Introduction
How to install it
Cut an 85mm (3 3/8″) hole in the panel and allow a clearance of 55mm (2 3/16 ) behind the panel to fit the gauge.
– Put the gauge in the hole and screw down.

Why Don’t get RPM signal
Tachometer sometimes cannot get signal by ignition system. So, I suggest Tacho sensor signal. It is more stable.
I suggest you can buy a Tacho sensor from Parts. ASIN NO. is B07RR8NQ45, B07RN3HJ72.

Recommend 0-190ohm fuel level sensor
– 150mm ASIN NO. B075CH3TTR
– 175mm ASIN NO. B075CFCPBR
– 200mm ASIN NO. B075CGTT9J
– 225mm ASIN NO. B075CH4BVR
– 250 mm ASIN NO. B075CGG47K
– 275 mm ASIN NO. B075CH425R
– 300 mm ASIN NO. B075CGSHGH
– 330 mm ASIN NO. B086GMYNSV
– 450 mm ASIN NO. B075CHWBSP
– 500 mm ASIN NO. B075CL5SG5

Technical Data
Fixing dimension
85mm(3-3/8″)
Working Voltage
12V/24V
Tachometer RPM Range
0-19999 RPM
Hour Meter Range
0-99999.9 hours
Water Temp Range
40-120 /104-248 H
Oil Pressure Range
0-5Bar 0-75Psi /0-10 bar 0-145 Psi
Voltmeter
8-36V DC
Fuel level Range
0-100%
Operation mode
LCD display, stepper motor
Working temperatures
– 40 to 85 C
Protection Grade
IP67
How to be setting Tach RPM Ratio
1. Press the button for 2-3 seconds first, then turn on the power supply.
2. Release the button after seeing PULSE ; Press the button to set up speed ratio from 0.5 to 327. After adjustment, release button and wait for menu to complete flashing.
3. After setting, release button and wait for menu to complete flashing., then it will save the setting.
4. Please note: If your sensor is installed on the flying wheel panel, the RPM ratio is equal to the number of gears of the engine; If the speed signal takes from W-Terminal, the RPM ratio is equal to the half of the number of poles.
5. Normally, When the engine at idle state, tachometer shows 600-800rpm that means speed ratio is correct. If not, you can turn down or turn up speed ratio to check RPM difference.

Which gauges need to be used with sensors
-Tachometer, match tacho sensor.
-Water temp meter, match temp sensor. ohm signal refers to manual page 2.
-Oil pressure meter, match pressure sensor. ohm signal refers to manual page 1.
-Fuel level meter, match fuel sensor. ohm signal also refers to manual page 2.
-Voltmeter, don’t need match sensor.

Recommend water temp sensor
– B0757JQP55 (3/8″-18NPT)
– B0757JBPNY (M16X1.5)
– B0757FHBXV (M14X1.5)
– B0757HR7XP (M10X1.0)
– B0757JQP54 (1/4″-18NPT)

Recommend Oil Pressure sensor
– B07FF252NK (NPT-1/4)
– B075NKWS21 (M10X1)
– B075NFHP18 (NPT-1/8)
– B07KVX6GNV (NPT-1/4)
– B075NLKTSB (M10X1)

Multi-functional Gauge
Multi-functional Gauge
Multi-functional Gauge
Multi-functional Gauge
Multi-functional Gauge
Multi-functional Gauge
size
85mm
52mm
85mm
85mm
85mm
85mm
color
white+stainless steel
black+stainless steel
black+black
white+stainless steel
black+stainless steel
black+black
Package Includes:
1x Multi-functional Gauge
1x Multi-plug socket
1x External button
1x Installation Instruction
