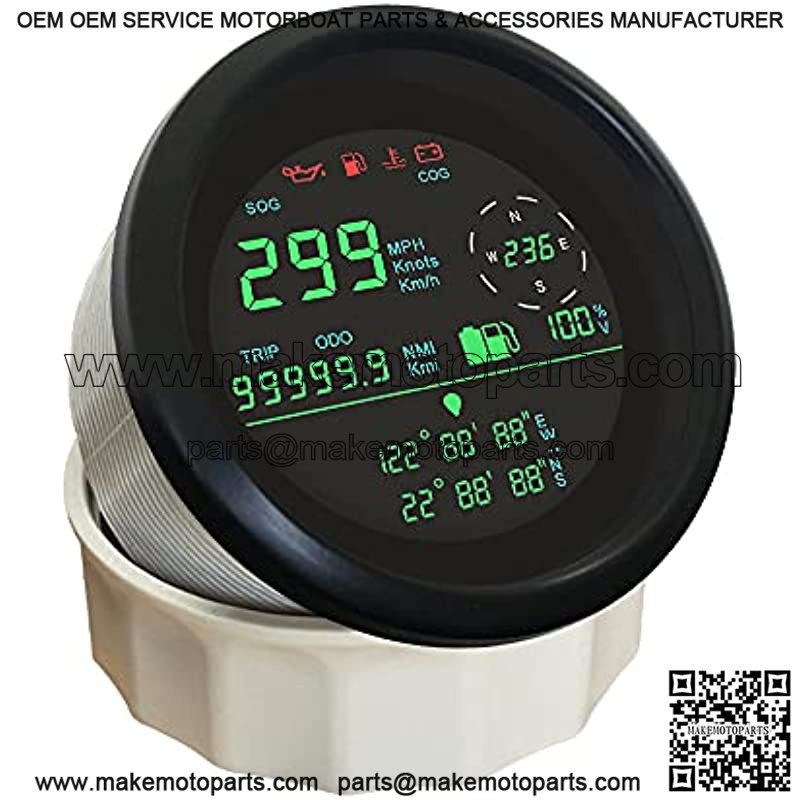

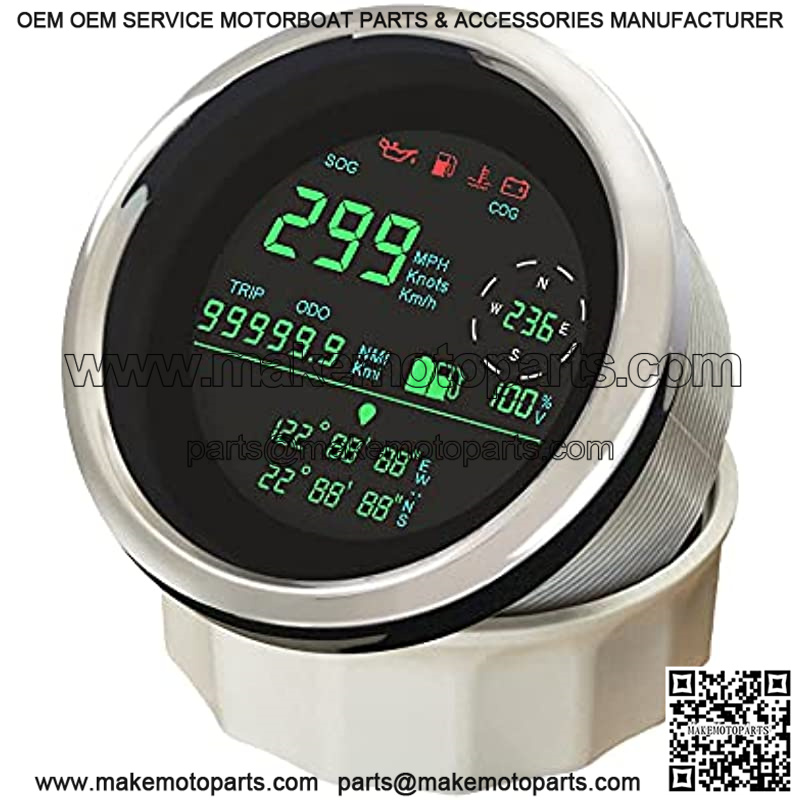

GPS Speedometer Odometer 0-299KM/H Knots MPH Mileage Adjustable Overspeed Alarm Fuel Level Meter Voltmeter for Boat Car Truck Motorcycle 85MM (Black+Black)

Open a 3-3/8″ dimension and 2-3/4″ depth hole, put gauge into it and fasten
Function: digital GPS Speedometer, COG/ODO, Trip Meter, Fuel Level, Voltmeter
No Subscription is required, GPS service is free, Antenna/Sensor is 12 feet long, cannot be cut. Mount the sensor at any position, on or under the dashboard
GPS Blind Area Odometer Compensation, Speed ??0 and show accurate speed in tunnel with the help of accelerometer, No Stationary Drift
12VDC Working Voltage,1 year Warranty, 100% Waterproof and anti-fogging protection
Product Features:

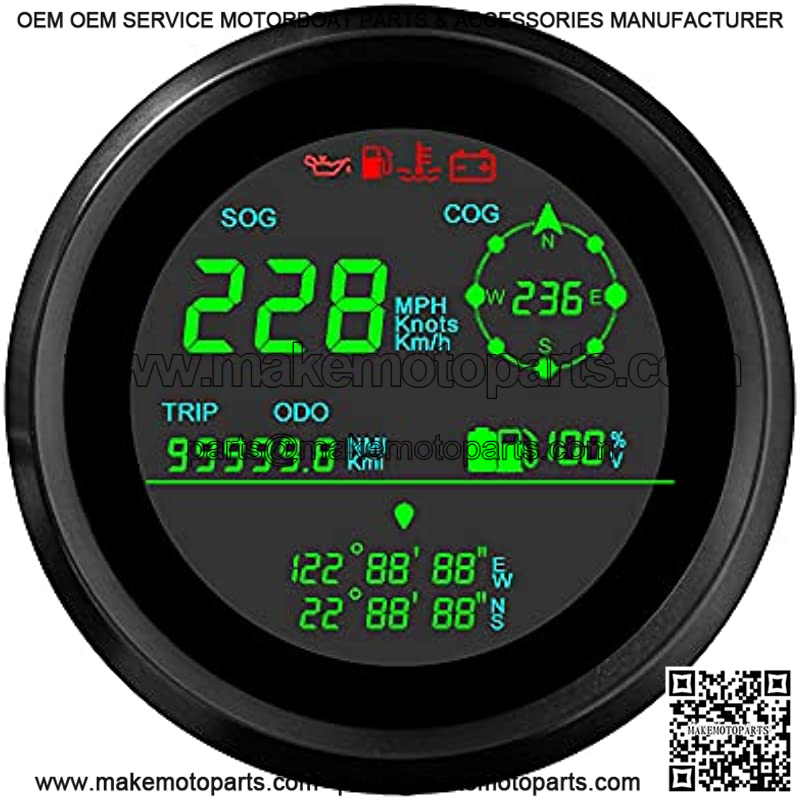

– Electronic Speedometer with Unique High Definition and Contrast Ratio LCD
– No Mechanical Sensor, get speed signal from GPS, No GPS Stationary Drift
– Total Mileage Adjustable, Trip Odometer Reset
– GPS Blind Area Odometer Compensation
– Switch unit between MPH(Mi), Knots(NMI) and Km/h (KM)
– Voltmeter &Fuel Gauge Switch show
– Fuel Gauge Ohm Signal Range Programmable
– OverSpeed Buzzer Alarm (Value Adjustable)
– Reverse polarity protection and anti-fogging performance
Product Introduction
How to install it

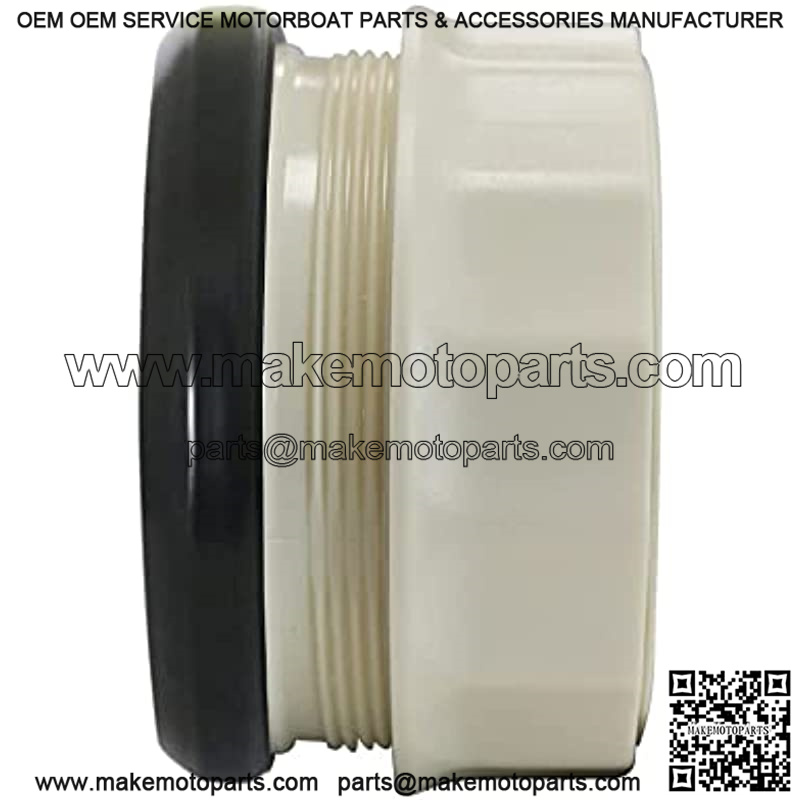

– Cut an 85mm (3 3/8″) hole in the panel and allow a clearance of 55mm (2 3/16??) behind the panel to fit the gauge.
– Put the gauge in the hole and tighten.
– For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.
GPS speedometer keeps counting
After installation in the first time, GPS speedometer needs to search for signal, that’s the reason that LCD counts numbers all the time.
After getting signal, LCD will come back to 0. It is normal.
Switch show Fuel Level Gauge and Voltmeter
– Press the button for 2-3 seconds first and then turn on the power supply;
– Press and hold on back button 2-3 seconds to switch show Fuel Gauge in % or Voltage in volts.
Technical Data
Fixing dimension
85mm(3-3/8″)
Mileage Range(ODO)
0-999999 (KM, Miles, NMI)
Mileage Range(TRIP)
0-999.9 (KM, Miles, NMI)
Mileage Range(SOG)
0-299(Km/h, MPH, Knots)
Working Voltage
12V/24V (If installed on E-bike, which has max 80V DC, power adapter will be needed)
Working temperatures
– 40 to 85??C
Operation mode
LCD display, stepper motor
OverSpeed Alarm
OverSpeed Buzzer Alarm (Value Adjustable)
How to set unit
– Press the back button for 2-3 seconds first and then turn on the power supply.
– Release the button after seeing ??UNIT??.
– Choose the unit you need (km/h, mph, knots)
– After adjustment, release button, and wait for menu to complete flashing.
– Turn off the power supply, then turn on again. Odometer will record the setting.
How to set Odometer
– Press the back button for 2-3 seconds first and then turn on the power supply.
– Release the button after seeing ??ODO??; Press the button to set up the target odometer value.
– After adjustment, release button first, then wait for menu to complete flashing.
– Turn off the power supply, then turn on again. Odometer will record the setting.
Recommend 0-190ohm fuel level sensor
– 150mm ASIN NO. B075CH3TTR
– 175mm ASIN NO. B075CFCPBR
– 200mm ASIN NO. B075CGTT9J
– 225mm ASIN NO. B075CH4BVR
– 250 mm ASIN NO. B075CGG47K
External button wiring
For the external button, one pin is connected to blue wire of speedometer, the other to power negative/ground.
999(MPH, Knots, KM/H adjustable)
999(MPH, Knots, KM/H adjustable)
999(MPH, Knots, KM/H adjustable)
999(MPH, Knots, KM/H adjustable)
999(km/h, mph, knots available)
999(km/h, mph, knots available)
size
52mm
52mm
85mm
85mm
52mm
85mm
color
white+stainless steel
black+stainless steel
black+black
white+stainless steel
black+stainless steel
black+black
Indicating Range
0-999(MPH, Knots, KM/H adjustable)
0-999(MPH, Knots, KM/H adjustable)
0-999(MPH, Knots, KM/H adjustable)
0-999(MPH, Knots, KM/H adjustable)
0-999(km/h, mph, knots available)
0-999(km/h, mph, knots available)
adjustable odometer
no
no
yes
no
yes
yes
Type
GPS speedometer
GPS speedometer
GPS speedometer
GPS speedometer
GPS speedometer
GPS speedometer

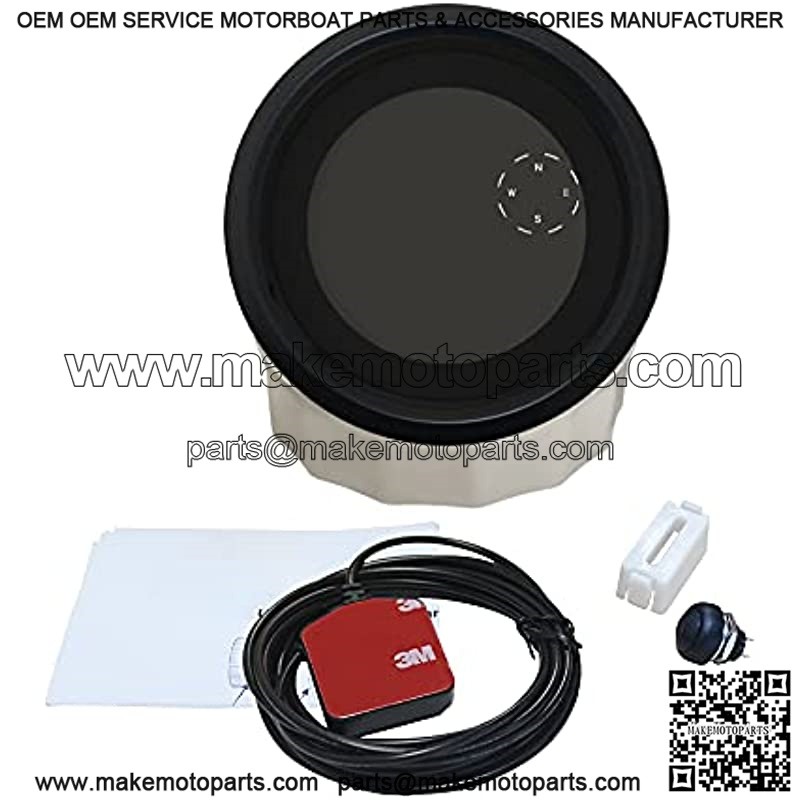

Package Includes:
1x GPS speedometer
1x GPS Antenna
1x Multi-plug socket
1x External Button
1x Installation Instruction
