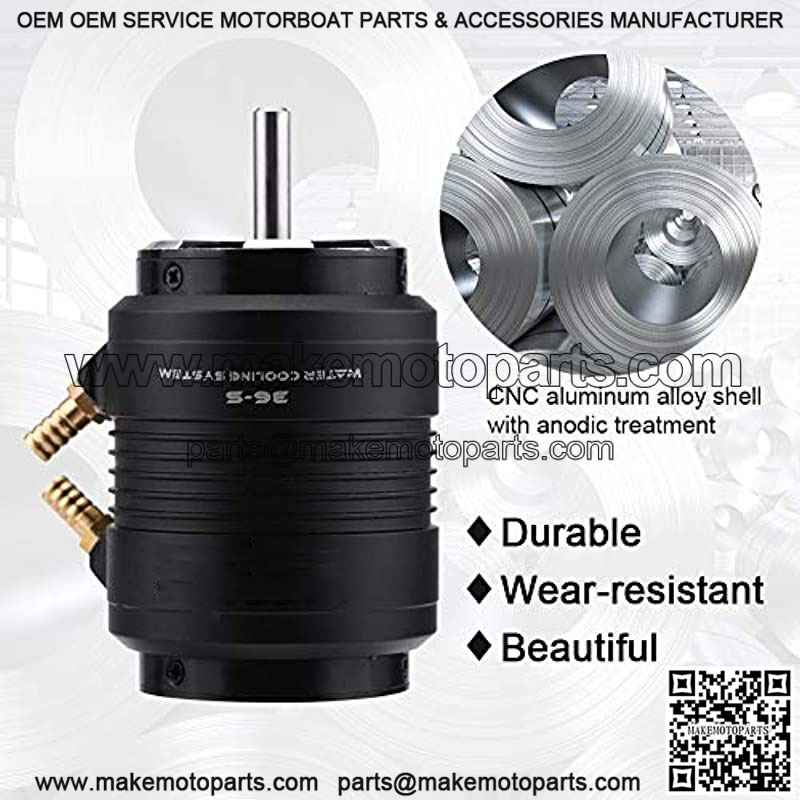

Motor Set, 4 Poles 3660 4300KV Motor with 90A Waterproof ESC and 36-S Water Cooling Jacket for RC Boat DIY High Purity Copper Windings Maximizes Efficiency

??Motor Set??– Includes a 3660 4300KV motor with 36-S water cooling jacket and a 90A ESC, specially designed for 800-1000mm RC boat.
??High Quality ESC Combo Set??– Made of high quality aluminum alloy and anodized finish for durability, the motor is corrosion resistant and beautiful.
??Excellent Performance??– This ESC provides 90A continuous current with high performance, and provides power for the receiver with 5.5V/3A BEC. 4 poles with 12 slots design provides high torque and efficiency. Precision balanced rotor with high smoothness and accuracy for best reliability and maximum RPM makes your RC boat run more powerful and faster.
??Safe and Reliable??– Features multiple protection including low-voltage cut-off protection, over-heat protection, throttle signal loss protection and power reduction protection.
??Specifications??– KV(RPM/Volt): 4300KV, RPM: 60000, Watt: 1200W, No-load Current: 3.8A, Max. Voltage: 14V, Continuous Current: 90A, Burst Current: 110A (10s), Voltage: 5-18 NC / 2-6V LiPo
Product Description
Features:
1. Includes a 3660 4300KV motor with 36-S water cooling jacket and a 90A ESC, specially designed for 800-1000mm RC boat.
2. Made of high quality aluminum alloy and anodized finish for durability, the motor is corrosion resistant and beautiful.
3. 4 poles with 12 slots design provides high torque and efficiency.
4. Copper winding with high purity maximizes efficiency.
5. Precision balanced rotor with high smoothness and accuracy for best reliability and maximum RPM makes your RC boat run more powerful and faster.
6. This ESC provides 90A continuous current with high performance, and provides power for the receiver with 5.5V/3A BEC.
7. Features multiple protection including low-voltage cut-off protection, over-heat protection, throttle signal loss protection and power reduction protection.
Specifications:
Material: Metal + Aluminium Alloy
Color: As Pictures
Type: RC Accessory
Weight: 420g
Motor
KV(RPM/Volt): 4300KV
RPM: 60000
Watt: 1200W
No-load Current: 3.8A
Max. Voltage: 14V
Diameter: 36mm / 1.4inch
Length: 60mm / 2.36inch
Shaft Diameter: 5mm / 0.2inch
Compatible Models: Suitable for 800-1000mm RC boat
Connector: 4mm golden banana connector
ESC
Continuous Current: 90A
Burst Current: 110A (10s)
Voltage: 5-18 NC / 2-6V LiPo
Program: Yes
BEC: 5.5V/3A
Size: 80 * 50 * 23mm / 3.15 * 1.97 * 0.9inch(without cables)

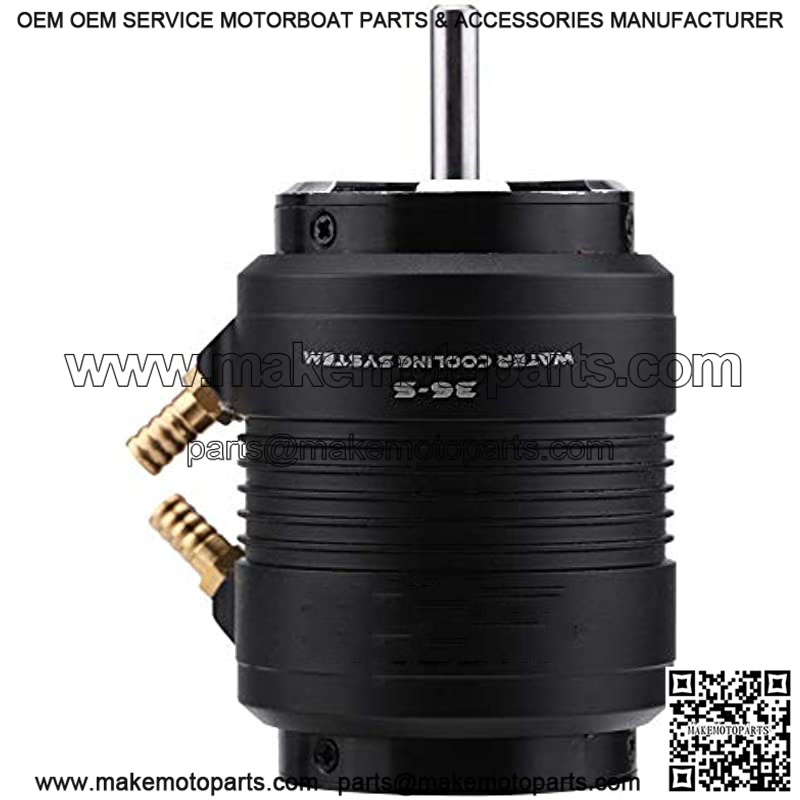

Water Cooling Jacket:
Item Name.: 36-S Water Cooling Jacket
Outlet Fitting Diameter: 4.5mm / 0.18inch
Jacket Inner Diameter: 36mm / 1.4inch
Jacket Outer Diameter: 44mm / 1.7inch
Jacket length: 47mm / 1.85inch

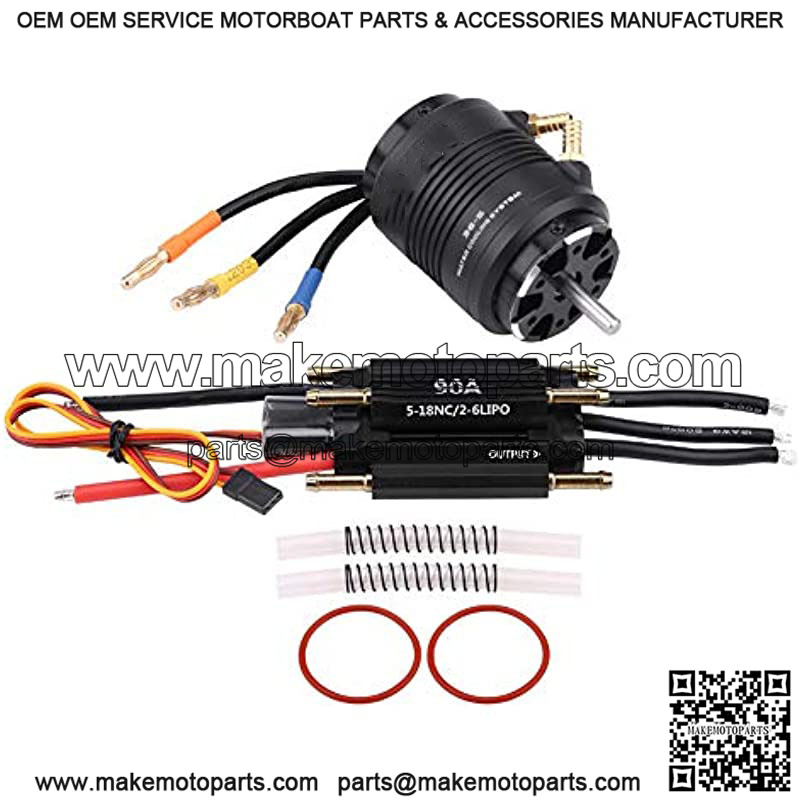

Package Include:
1 x Motor
1 x Water Cooling Jacket
1 x Electronic Speed Controller
2 x Water Cooling Tubes
