Rear Knuckle Bushings Set for Yamaha Grizzly 660 YFM660 (2002-2008) – 90381-17067-00

Premium Quality Replacement Part
Rear Left or Right Upper & Lower Knuckle Bushings
Compatible with Yamaha Models:
Grizzly 350 YFM350 2007-2011
Grizzly 400 YFM400 4×4 2007-2008
Grizzly 450 YFM450 4×4 2007-2013
Grizzly 550 YFM550 4×4 2009-2013
Grizzly 660 YFM660 4×4 2002-2008
Grizzly 700 YFM700 4×4 2007-2013
Rhino 450 YXR450 4×4 2006-2009
Rhino 660 YXR660 4×4 2004-2007
Rhino 700 YXR700F 4×4 2008-2009 2011-2013
Kodiak 400 YFM400 4×4 2005-2006
Kodiak 450 YFM450 4×4 2005-2006
Big Bear 400 YFM400 4×4 2007-2012
Order Includes:

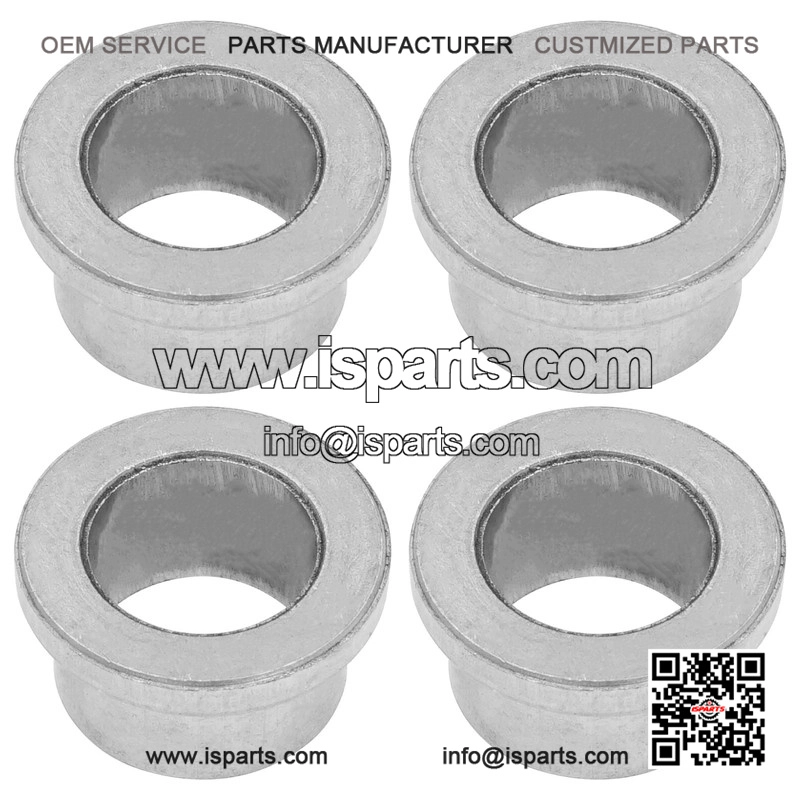

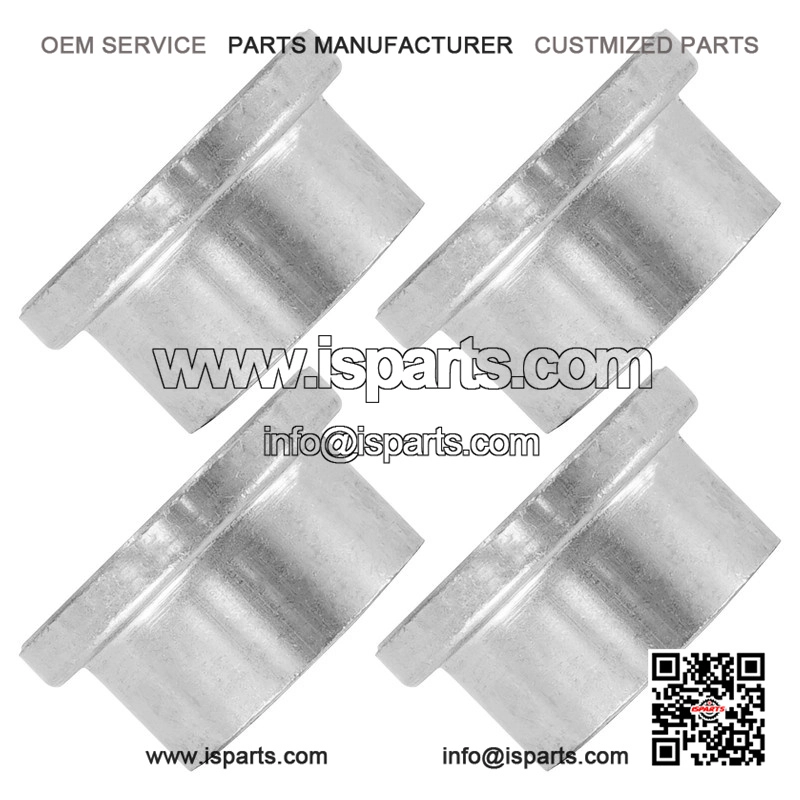

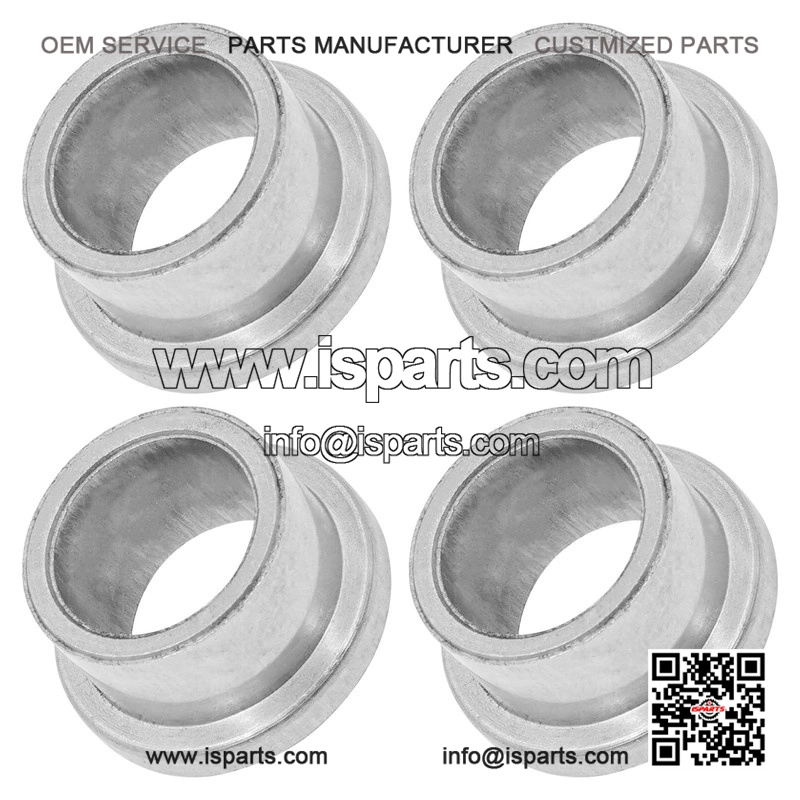

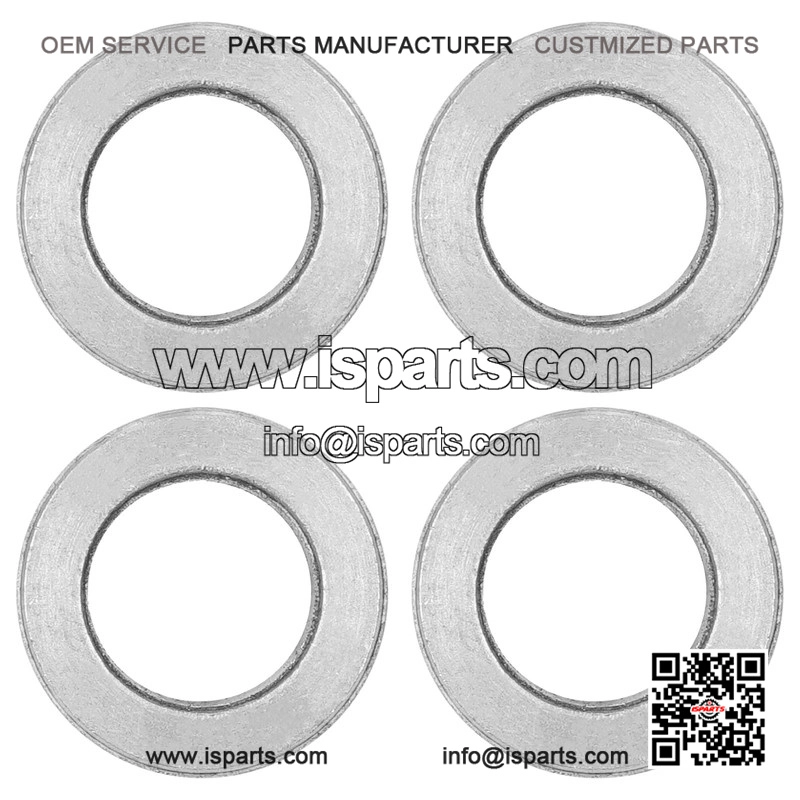

4 x Bushing: 90381-17067-00

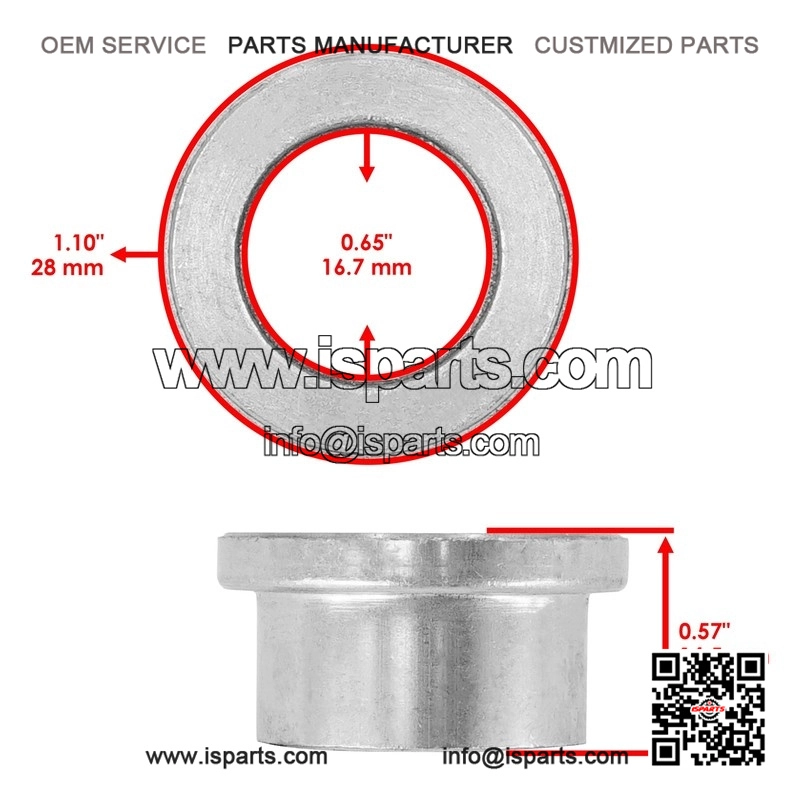

Width: 14.5 mm – 0.57 in
Inner Diameter: 16.7 mm – 0.65 in
Outer Diameter: 28 mm – 1.1 in
Rear Left & Right Knuckle Part Number:
5KM-2530F-00-00, 5KM-2530F-10-00, 5KM-2530F-11-00, 5UG-F530F-00-00, 5UG-F530F-11-00
1D9-F530F-00-00, 1D9-F530F-01-00, 1D9-F532F-01-00, 3B4-2532F-00-00, 3B4-2530F-00-00
5B4-F530F-00-00, 5B4-F532F-00-00, 28P-2530F-00-00, 28P-2532F-00-00
1HP-F530F-00-00, 2BG-F530F-01-00, 1HP-F532F-00-00, 2BG-F532F-01-00
