Stylemafia Max 300A Continuous Duty Solenoid Relay Nickel-Plating For Golf Carts, Winch, Marine In Rush 12VDC

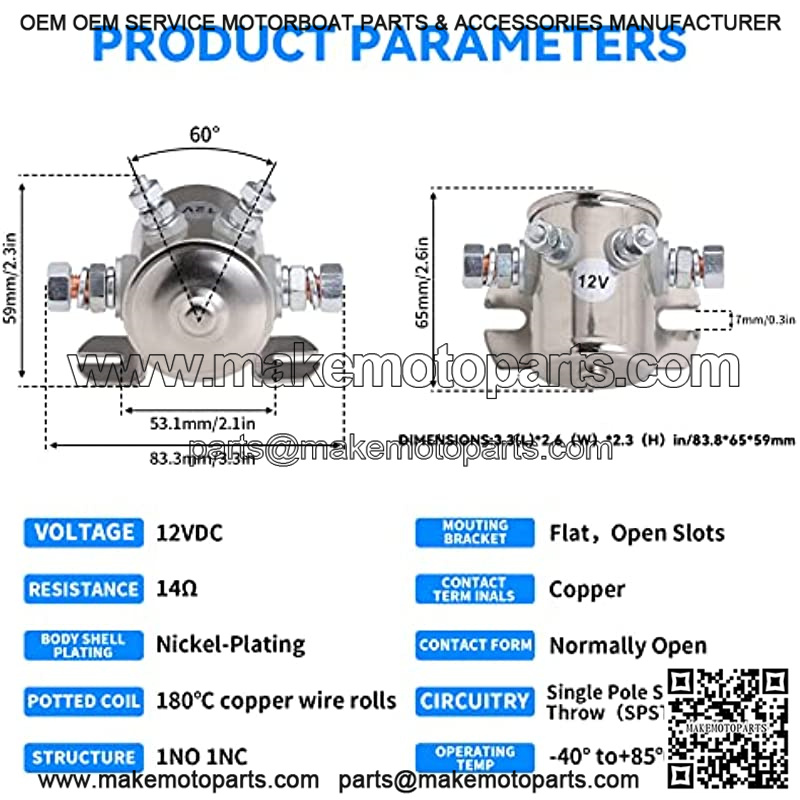

Resistance is 14??, Capacity is 10.2W, Contacts:Normally Open (NO)/ 12VDC WITH 2 COPPER POINT
Replaces:70-111224,3635820, 1114208, 1114218, 1114223, 1114534, 1114547/ Bracket:Straight;Spst, One circuit: Off – On, Bracket mounting:Holes 5/16 x 19/32 2-13/64 on center
Our Coil Roll is using 180?? copper wire, Cover is Nickel-Plating, Meet Environmental Plating Requirment, And Avoid Rusting, Shining
Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp/ WARRANTY: Life Long Warranty and Free Return and Full Refund
Note: Normally Make 80A as Working Current, Need Break 5 sec on, 50 min off
Product Description
Stylemafia Max 300A Continuous Duty Solenoid Relay Nickel-Plating For Golf Carts, Winch, Marine In Rush 12VDC Resistance is 14??, Capacity is 10.2W, Contacts:Normally Open (NO)/ 12VDC WITH 2 COPPER POINT Replaces:70-111224,3635820, 1114208, 1114218, 1114223, 1114534, 1114547/ Bracket:Straight;Spst, One circuit: Off – On, Bracket mounting:Holes 5/16 x 19/32 2-13/64 on center Our Coil Roll is using 180?? copper wire, Cover is Nickel-Plating, Meet Environmental Plating Requirment, And Avoid Rusting, Shining Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp/ WARRANTY: 90days Warranty and Free Return and Full Refund Note: Normally Make 80A as Working Current, Need Break 5 sec on, 50 min off
