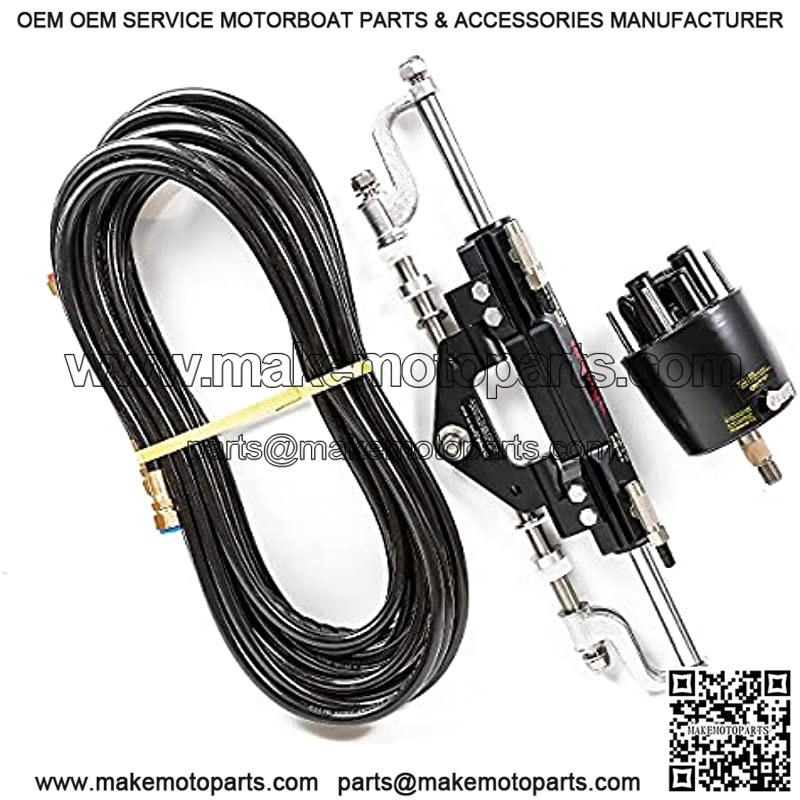

ZA0350V2 Boat Hydraulic Outboard Steering Kit with Helm Pump, Compact Cylinder, Tubing for Engines up to 350HP

tube connection to the engine, make it universally fits all the models of outboards up to 300hp
Pivot plate design, strong and durable
tube kits in 8 meters each
High precision plunges in the pump, made steering smoothly
Made in High class stainless steel and aluminum alloy

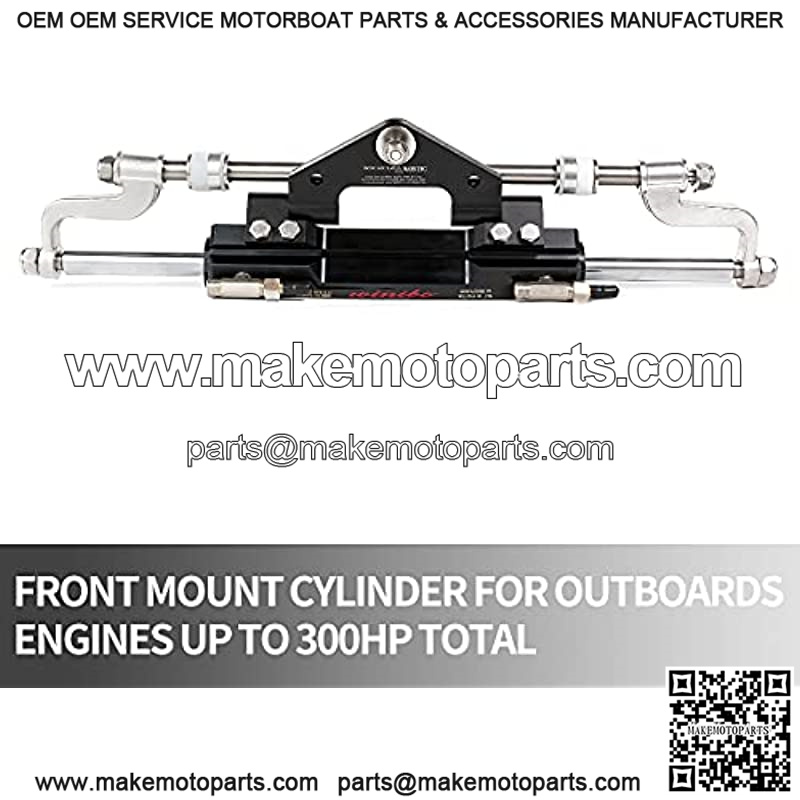

High Performance Front Mount Cylinder
High Performance Front Mount Cylinder
Swiveling fittings for easy installation
High resistance stainless steel connection bolt
The number of turns lock-to-lock is equal port to starboard or vice-versa
For single engine single cylinder, up to 300 hp max
For dual engine single cylinder, up to 600 hp max
For dual engine dual cylinder, up to 600 hp max
For a second station added, need additional helm
Cylinder specification
Volume
141.8cc
Output Force
468 kg – 1032 lbs
Tube I.D
35 mm – 1.38″
Piston I.D
20 mm – 0.79″
Stroke
219 mm – 8.62″
3/8″ (9.5mm) Fittings
For high pressure flex hose
Compact Front Mount Helm Pumps
Compact Front Mount Helm Pumps
Hydraulic Steering Pump
Compact design
Built-in lock valve for positive rudder lock
Integral relief valve for over-pressure protection
7 plunger
3/4″ tapered stainless shaft
Anodized cover
ORB ports
Displacement/Revolution 27 cc
Adjustable ORB fittings
Adjustable O-ring (ORB) fittings simplify the installation process and will allow for simple reorientation of the fittings after installation
ORB fittings made in Chrome plated Copper.
Cut-to-length Tube
